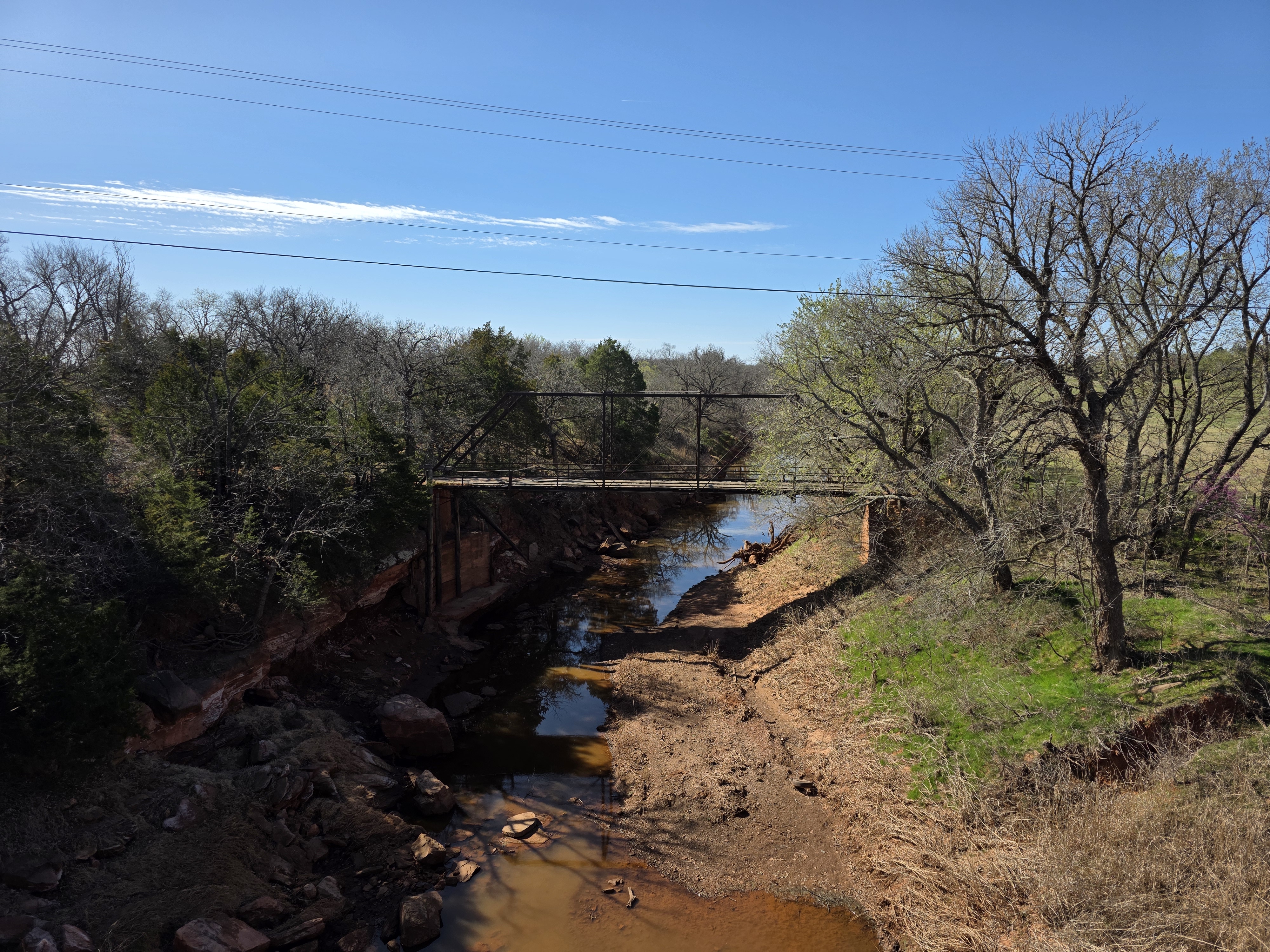

E0690 Rd over Beaver Creek
Built 1914 (112 yrs ago)
Closed to traffic
Through Truss
E0690 Rd over Beaver Creek
Through Truss
Built 1914
90.00 ft
Built
1914
Type
Through Truss
Style
Pratt
Length
90.00 ft
Main span
90.00 ft
Spans
1
Visits
1
About
Pin connect 5 panel pratt through truss
Identity & location
- NBI Number
- 003850000000000
- Structure Number
- 42E0690N3160005
- Carries
- E0690 Rd
- Crosses
- Beaver Creek
- Year Built
- 1914
Structure
1 × 90.00ft Pratt Through Truss span (5 panels)
- Bridge Type
- Through Truss
- Main Span Style
- Pratt
- Overall Length
- 90.00 ft
- Main Span Length
- 90.00 ft
- Deck Width
- 15.70 ft
- Clearance
- 14.30 ft
- Main Spans
- 1
- Main Span Panels
- 5
Photos · 12
Unattached photos
Visit log · 1
-
Mar 22, 2025by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 00385 | 00385 | ✓ |
| Structure No | 42E0690N3160005 | 42E0690N3160005 | ✓ |
| ODOT BRKEY | 385 | — | ⚠ |
| County | Logan | Logan | ✓ |
| Facility Carried | E0690 | E0690 Rd | ✗ |
| Feature | BEAVER CREEK | Beaver Creek | ✓ |
| Alt Name | 42E0690N3160005 | — | ⚠ |
| Description | 89ft. HI TRUSS SPAN | Pin connect 5 panel pratt through truss | ✗ |
| Year Built | 1914 | 1914 | ✓ |
| Latitude | 36.01374444 | 36.0137778 | ✗ |
| Longitude | -97.36376944 | -97.3636111 | ✗ |
| Overall Length | 88.999 | 90.00 | ✗ |
| Deck Width | 16.001 | 15.70 | ✗ |
| Main Spans | 1 | 1 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 1 | — | ⚠ |
| Road Width | 15.6 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Wood or Timber (8) | — | ⚠ |
| Open / Closed | Closed (K) | — | ⚠ |
| Sufficiency | 16 | — | ⚠ |
| Structure Rating | Failed (0) | — | ⚠ |
| Deck Rating | Failed (0) | — | ⚠ |
| Super Rating | Failed (0) | — | ⚠ |
| Sub Rating | Failed (0) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 25 | — | ⚠ |
| ADT Year | 2016 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Logan | Logan | ✓ |
| Structure No | 42E0690N3160005 | 42E0690N3160005 | ✓ |
| Build Date | 1914 | 1914 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 89 | 90.00 | ✗ |
| Longest Span | 89 | 90.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | pinned | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 14 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Logan | Logan | ✓ |
| Structure Number | 42E0690N3160005 | 42E0690N3160005 | ✓ |
| Built Year | 1914 | 1914 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Pratt | — | ⚠ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 89 | 90.00 | ✗ |
| Main Span Length | 89 | 90.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | pinned | — | ⚠ |
| Curb Width | 14 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
3 surveys · 45 fields
| Field | Bridge | 2026 | 2007 | 1993 |
|---|---|---|---|---|
| NBI No | 00385 | 00385 ✓ | — | — |
| Structure No | 42E0690N3160005 | 42E0690N3160005 ✓ | 42E0690N3160005 ✓ | 42E0690N3160005 ✓ |
| ODOT BRKEY | — | 385 | — | — |
| County | Logan | Logan ✓ | Logan ✓ | Logan ✓ |
| Facility Carried | E0690 Rd | E0690 ✗ | — | — |
| Feature | Beaver Creek | BEAVER CREEK ✓ | — | — |
| Alt Name | — | 42E0690N3160005 | — | — |
| Description | Pin connect 5 panel pratt through truss | 89ft. HI TRUSS SPAN ✗ | — | — |
| Year Built | 1914 | 1914 ✓ | 1914 ✓ | 1914 ✓ |
| Latitude | 36.0137778 | 36.01374444 ✗ | — | — |
| Longitude | -97.3636111 | -97.36376944 ✗ | — | — |
| Overall Length | 90.00 | 88.999 ✗ | — | — |
| Deck Width | 15.70 | 16.001 ✗ | — | — |
| Main Spans | 1 | 1 ✓ | — | — |
| Skew | — | 0 | — | — |
| Lanes | — | 1 | — | — |
| Roadway / Curb Width | — | 15.6 | 14 | 14 |
| Material | — | 3 - Steel | — | — |
| Design | — | Truss — Thru (10) | — | — |
| Span Type Main | — | Main span (M) | — | — |
| Deck Structure | — | Wood or Timber (8) | — | — |
| Open / Closed | — | Closed (K) | — | — |
| Sufficiency | — | 16 | — | — |
| Structure Rating | — | Failed (0) | — | — |
| Deck Rating | — | Failed (0) | — | — |
| Super Rating | — | Failed (0) | — | — |
| Sub Rating | — | Failed (0) | — | — |
| Culvert Rating | — | Not applicable (N) | — | — |
| Owner | — | 02 - County Highway Agency | — | — |
| Custodian | — | 02 - County Highway Agency | — | — |
| Hwy System | — | 0 - Off Highway | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — |
| Bridge System | — | D | — | — |
| ADT | — | 25 | — | — |
| ADT Year | — | 2016 | — | — |
| Historical | — | 4 | — | — |
| Bridge Type | Through Truss | — | Through Truss ✓ | Through Truss ✓ |
| Num Spans | 1 | — | 1 ✓ | 1 ✓ |
| Total Length | 90.00 | — | 89 ✗ | 89 ✗ |
| Main / Longest Span | 90.00 | — | 89 ✗ | 89 ✗ |
| Builder Plate | — | No ✓ | No ✓ | |
| Connections | — | — | pinned | pinned |
| NR Eligible | — | — | No | — |
| Bridge Design | — | — | — | Pratt |
| NRHP Listed | — | — | No ✓ |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
