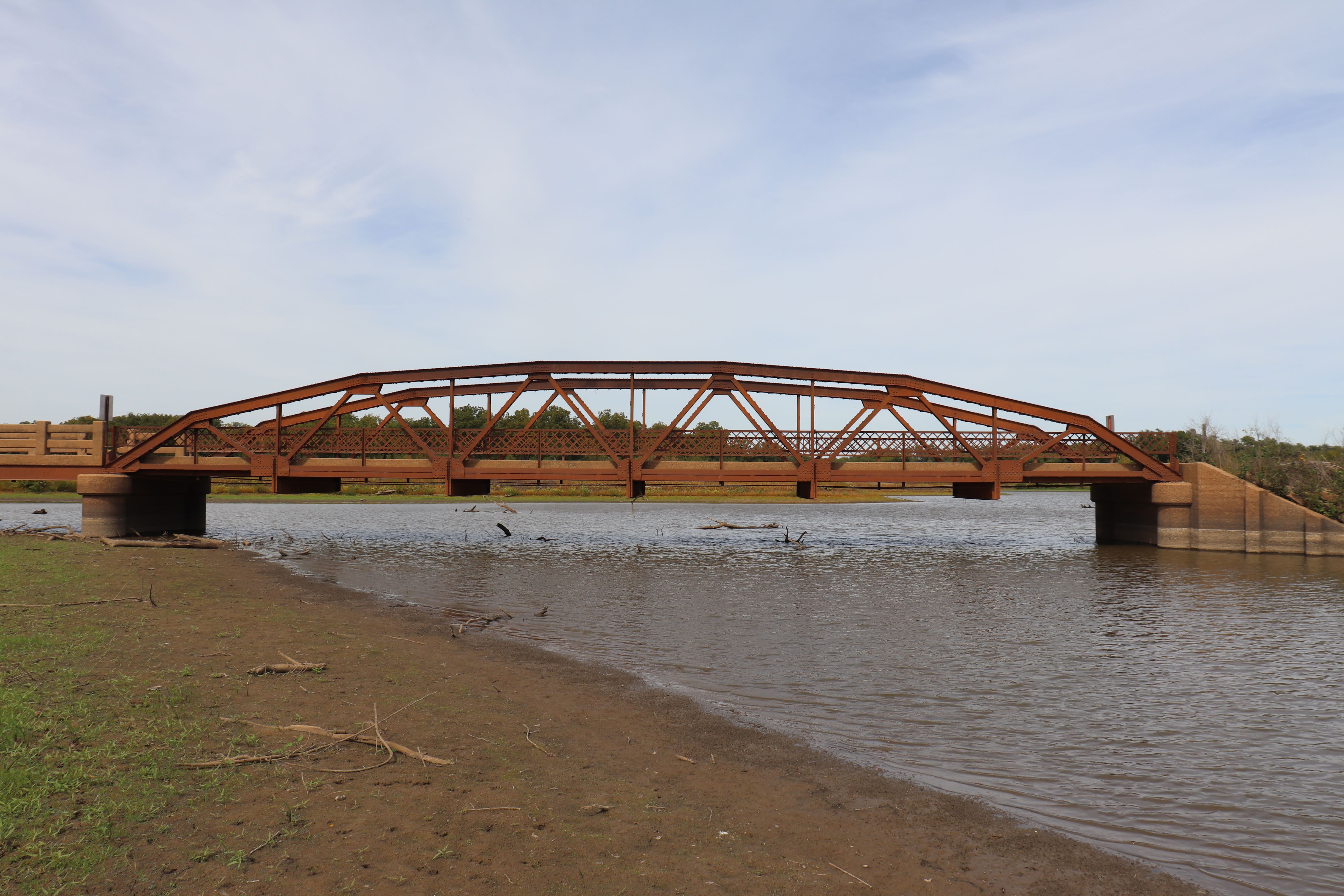

5756C over Birch Creek
In service since 1936 (90 yrs)
Pony Truss
5756C over Birch Creek
Pony Truss
Built 1936
136.20 ft
Built
1936
Type
Pony Truss
Style
Warren with Polygonal Top Chord
Length
136.20 ft
Main span
104.00 ft
Spans
1
Builder
Works Progress Administration
Visits
1
About
Polygonal Warren Pony Truss
Identity & location
- NBI Number
- 065520000000000
- Structure Number
- 57N3825E0060005
- Carries
- 5756C
- Crosses
- Birch Creek
- Year Built
- 1936
Structure
1 × 104.00ft Warren with Polygonal Top Chord Pony Truss span
- Bridge Type
- Pony Truss
- Main Span Style
- Warren with Polygonal Top Chord
- Builder
- Works Progress Administration
- Overall Length
- 136.20 ft
- Main Span Length
- 104.00 ft
- Deck Width
- 15.10 ft
- Main Spans
- 1
Photos · 70
Unattached photos
Visit log · 1
-
Sep 28, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 06552 | 06552 | ✓ |
| Structure No | 57N3825E0060005 | 57N3825E0060005 | ✓ |
| ODOT BRKEY | 6552 | — | ⚠ |
| County | Osage | Osage | ✓ |
| Facility Carried | 5756C | 5756C | ✓ |
| Feature | BIRCH CREEK | Birch Creek | ✓ |
| Alt Name | 57N3826E0060005 | — | ⚠ |
| Description | 104ft. PONY TRUSS & 32 | Polygonal Warren Pony Truss | ✗ |
| Year Built | 1938 | 1936 | ✗ |
| Latitude | 36.919283 | 36.9192778 | ✗ |
| Longitude | -96.178958 | -96.1789722 | ✗ |
| Overall Length | 136.155 | 136.20 | ✗ |
| Deck Width | 16.076 | 15.10 | ✗ |
| Main Spans | 1 | 1 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 1 | — | ⚠ |
| Road Width | 15.092 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 21.3 | — | ⚠ |
| Structure Rating | Critical (2) | — | ⚠ |
| Deck Rating | Fair (5) | — | ⚠ |
| Super Rating | Fair (5) | — | ⚠ |
| Sub Rating | Fair (5) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 07 - Major Collector (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 100 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 2 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| NBI No | 06552 | 06552 | ✓ |
| Structure No | 57N3825E0060005 | 57N3825E0060005 | ✓ |
| Facility Carried | 5756C | 5756C | ✓ |
| Feature | BIRCH CREEK | — | ⚠ |
| Truss Type | Warren with Polygonal Top Chord Pony Truss | Pony Truss | ✗ |
| Year Built | 1936 | 1936 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | Yes | — | ⚠ |
| NRHP Criteria | Eligible (A, C) | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure No | 57N3825E0060005 | 57N3825E0060005 | ✓ |
| Build Date | 1936 | 1936 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Num Spans | 2 | 1 | ✗ |
| Total Length | 136 | 136.20 | ✗ |
| Longest Span | 104 | 104.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | Works Progress Administration | Works Progress Administration | ✓ |
| Curb Width | 15 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure Number | 57N3825E0060005 | 57N3825E0060005 | ✓ |
| Built Year | 1936 | 1936 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Bridge Design | Parker | — | ⚠ |
| Num Spans | 2 | 1 | ✗ |
| Total Length | 136 | 136.20 | ✗ |
| Main Span Length | 104 | 104.00 | ✗ |
| Builder Plate | Yes | ✗ | |
| Connections | riveted | — | ⚠ |
| Curb Width | 15 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 47 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 06552 | 06552 ✓ | 06552 ✓ | — | — |
| Structure No | 57N3825E0060005 | 57N3825E0060005 ✓ | 57N3825E0060005 ✓ | 57N3825E0060005 ✓ | 57N3825E0060005 ✓ |
| ODOT BRKEY | — | 6552 | — | — | — |
| County | Osage | Osage ✓ | Osage ✓ | Osage ✓ | Osage ✓ |
| Facility Carried | 5756C | 5756C ✓ | 5756C ✓ | — | — |
| Feature | Birch Creek | BIRCH CREEK ✓ | BIRCH CREEK ✓ | — | — |
| Alt Name | — | 57N3826E0060005 | — | — | — |
| Description | Polygonal Warren Pony Truss | 104ft. PONY TRUSS & 32 ✗ | — | — | — |
| Year Built | 1936 | 1938 ✗ | 1936 ✓ | 1936 ✓ | 1936 ✓ |
| Latitude | 36.9192778 | 36.919283 ✗ | — | — | — |
| Longitude | -96.1789722 | -96.178958 ✗ | — | — | — |
| Overall Length | 136.20 | 136.155 ✗ | — | — | — |
| Deck Width | 15.10 | 16.076 ✗ | — | — | — |
| Main Spans | 1 | 1 ✓ | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 1 | — | — | — |
| Roadway / Curb Width | — | 15.092 | — | 15 | 15 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 21.3 | — | — | — |
| Structure Rating | — | Critical (2) | — | — | — |
| Deck Rating | — | Fair (5) | — | — | — |
| Super Rating | — | Fair (5) | — | — | — |
| Sub Rating | — | Fair (5) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 07 - Major Collector (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 100 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 2 | — | — | — |
| Truss Type | Pony Truss | — | Warren with Polygonal Top Chord Pony Truss ✗ | Pony Truss ✓ | Pony Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | Yes | No | — |
| NRHP Criteria | — | — | Eligible (A, C) | — | — |
| Num Spans | 1 | — | — | 2 ✗ | 2 ✗ |
| Total Length | 136.20 | — | — | 136 ✗ | 136 ✗ |
| Main / Longest Span | 104.00 | — | — | 104 ✗ | 104 ✗ |
| Builder Plate | — | — | No ✓ | Yes ✗ | |
| Connections | — | — | — | riveted | riveted |
| Builder | Works Progress Administration | — | — | Works Progress Administration ✓ | — |
| Bridge Design | — | — | — | — | Parker |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
