Bridge #77
In service since 1935 (91 yrs)
Through Truss
Bridge #77
Through Truss
Built 1935
Built
1935
Type
Through Truss
Style
Parker
Visits
1
Identity & location
- NBI Number
- 045850000000000
- Structure Number
- 57D3910E0093001

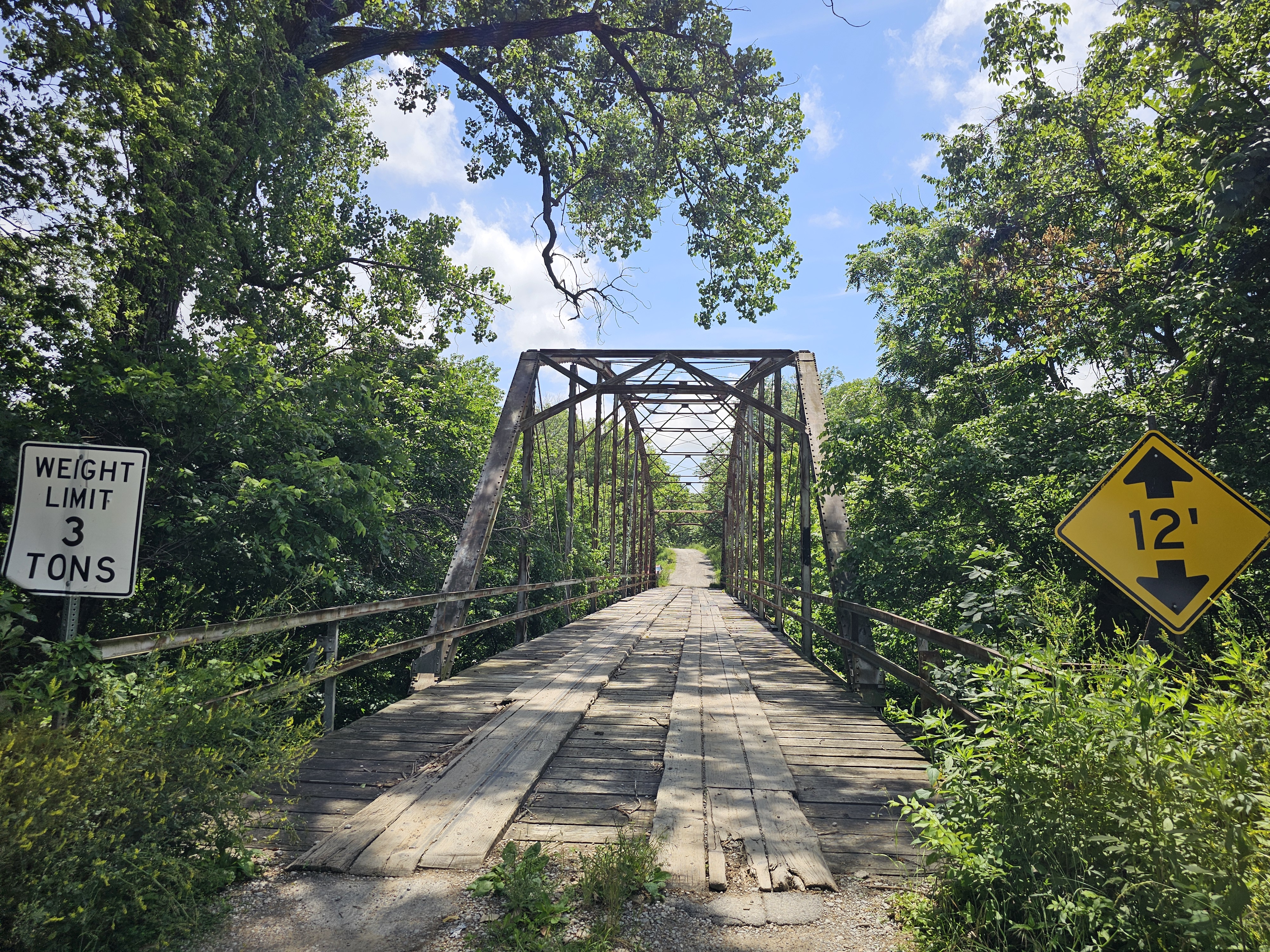

- Carries
- CR 3011
- Crosses
- Caney River
- Year Built
- 1935
Structure
Parker Through Truss
- Bridge Type
- Through Truss
- Main Span Style
- Parker
Photos · 17
Unattached photos
Visit log · 1
-
Jun 1, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 04585 | 04585 | ✓ |
| Structure No | 57D3910E0090001 | 57D3910E0093001 | ✗ |
| ODOT BRKEY | 4585 | — | ⚠ |
| County | Osage | Osage | ✓ |
| Facility Carried | D3910 | CR 3011 | ✗ |
| Feature | CANEY RIVER | Caney River | ✓ |
| Alt Name | 57N3910E0090001 | — | ⚠ |
| Description | 180ft. HI-TRUSS & 20ft. | — | ⚠ |
| Year Built | 1935 | 1935 | ✓ |
| Latitude | 36.88268333 | 36.8824722 | ✗ |
| Longitude | -96.0241 | -96.0243611 | ✗ |
| Overall Length | 201.001 | — | ⚠ |
| Deck Width | 16.001 | — | ⚠ |
| Main Spans | 1 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 1 | — | ⚠ |
| Road Width | 15 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Wood or Timber (8) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 18.4 | — | ⚠ |
| Structure Rating | Critical (2) | — | ⚠ |
| Deck Rating | Fair (5) | — | ⚠ |
| Super Rating | Poor (4) | — | ⚠ |
| Sub Rating | Poor (4) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 75 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure No | 57D3910E0093001 | 57D3910E0093001 | ✓ |
| Build Date | 1935 | 1935 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 2 | — | ⚠ |
| Total Length | 202 | — | ⚠ |
| Longest Span | 182 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | pinned | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 15 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure Number | 57D3910E0093001 | 57D3910E0093001 | ✓ |
| Built Year | 1935 | 1935 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Parker | — | ⚠ |
| Num Spans | 2 | — | ⚠ |
| Total Length | 202 | — | ⚠ |
| Main Span Length | 182 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | pinned | — | ⚠ |
| Curb Width | 15 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
3 surveys · 45 fields
| Field | Bridge | 2026 | 2007 | 1993 |
|---|---|---|---|---|
| NBI No | 04585 | 04585 ✓ | — | — |
| Structure No | 57D3910E0093001 | 57D3910E0090001 ✗ | 57D3910E0093001 ✓ | 57D3910E0093001 ✓ |
| ODOT BRKEY | — | 4585 | — | — |
| County | Osage | Osage ✓ | Osage ✓ | Osage ✓ |
| Facility Carried | CR 3011 | D3910 ✗ | — | — |
| Feature | Caney River | CANEY RIVER ✓ | — | — |
| Alt Name | — | 57N3910E0090001 | — | — |
| Description | — | 180ft. HI-TRUSS & 20ft. | — | — |
| Year Built | 1935 | 1935 ✓ | 1935 ✓ | 1935 ✓ |
| Latitude | 36.8824722 | 36.88268333 ✗ | — | — |
| Longitude | -96.0243611 | -96.0241 ✗ | — | — |
| Overall Length | — | 201.001 | — | — |
| Deck Width | — | 16.001 | — | — |
| Main Spans | — | 1 | — | — |
| Skew | — | 0 | — | — |
| Lanes | — | 1 | — | — |
| Roadway / Curb Width | — | 15 | 15 | 15 |
| Material | — | 3 - Steel | — | — |
| Design | — | Truss — Thru (10) | — | — |
| Span Type Main | — | Main span (M) | — | — |
| Deck Structure | — | Wood or Timber (8) | — | — |
| Open / Closed | — | Posted for load (P) | — | — |
| Sufficiency | — | 18.4 | — | — |
| Structure Rating | — | Critical (2) | — | — |
| Deck Rating | — | Fair (5) | — | — |
| Super Rating | — | Poor (4) | — | — |
| Sub Rating | — | Poor (4) | — | — |
| Culvert Rating | — | Not applicable (N) | — | — |
| Owner | — | 02 - County Highway Agency | — | — |
| Custodian | — | 02 - County Highway Agency | — | — |
| Hwy System | — | 0 - Off Highway | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — |
| Bridge System | — | D | — | — |
| ADT | — | 75 | — | — |
| ADT Year | — | 2022 | — | — |
| Historical | — | 4 | — | — |
| Bridge Type | Through Truss | — | Through Truss ✓ | Through Truss ✓ |
| Num Spans | — | — | 2 | 2 |
| Total Length | — | — | 202 | 202 |
| Main / Longest Span | — | — | 182 | 182 |
| Builder Plate | — | — | No | No |
| Connections | — | — | pinned | pinned |
| NR Eligible | — | — | No | — |
| Bridge Design | — | — | — | Parker |
| NRHP Listed | — | — | No ✓ |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
