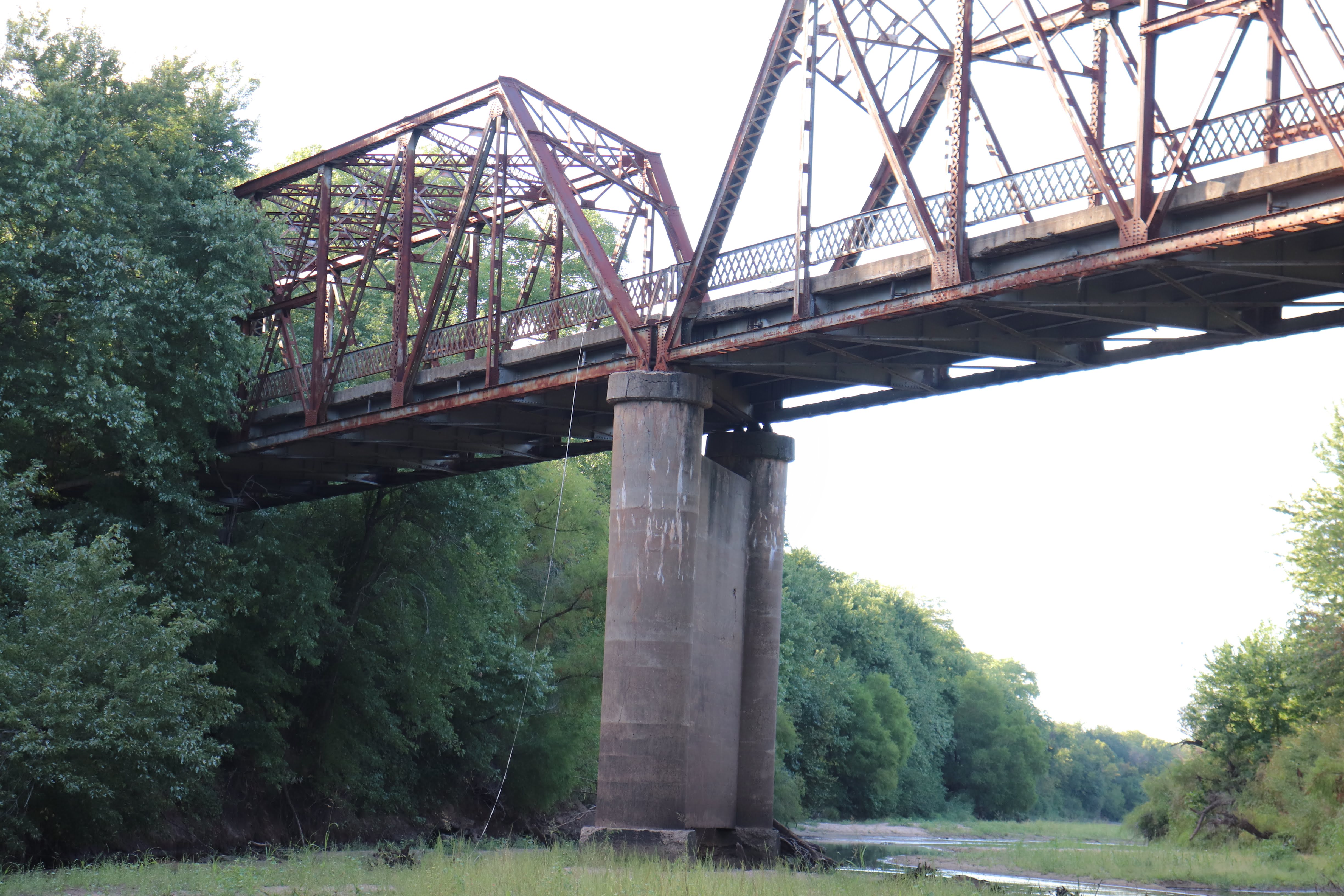

Bridge #75
In service 1924–2005 (81 yrs)
Closed to traffic
Through Truss
Bridge #75
Through Truss
Built 1924
Built
1924
Type
Through Truss
Style
Pratt
Visits
1
Identity & location
- NBI Number
- 014140000000000
- Structure Number
- 36E0145N3210007
- Carries
- Blackwell Ave / Old SH-11
- Crosses
- Chikaskia River
- Year Built
- 1924
- Year Closed
- 2005
Structure
Pratt Through Truss
- Bridge Type
- Through Truss
- Main Span Style
- Pratt
Photos · 51
Unattached photos
Visit log · 1
-
Sep 1, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 01414 | 01414 | ✓ |
| Structure No | 36E0145N3210007 | 36E0145N3210007 | ✓ |
| ODOT BRKEY | 1414 | — | ⚠ |
| County | Kay | Kay | ✓ |
| Facility Carried | E0145 (BLACKWELL) | Blackwell Ave / Old SH-11 | ✗ |
| Feature | CHIKASKIA RIVER | Chikaskia River | ✓ |
| Alt Name | 36E0145N3210007 | — | ⚠ |
| Description | 3-142ft. HI TRUSS SPANS | — | ⚠ |
| Year Built | 1924 | 1924 | ✓ |
| Latitude | 36.80421389 | 36.8042500 | ✗ |
| Longitude | -97.27053056 | -97.2696389 | ✗ |
| Overall Length | 536.801 | — | ⚠ |
| Deck Width | 20.4 | — | ⚠ |
| Main Spans | 3 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 20 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Closed (K) | — | ⚠ |
| Sufficiency | 16 | — | ⚠ |
| Structure Rating | Failed (0) | — | ⚠ |
| Deck Rating | Failed (0) | — | ⚠ |
| Super Rating | Failed (0) | — | ⚠ |
| Sub Rating | Failed (0) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 16 - Minor Arterial (Urban) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 300 | — | ⚠ |
| ADT Year | 2012 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Kay | Kay | ✓ |
| Structure No | 36E0145N3210007 | 36E0145N3210007 | ✓ |
| Build Date | 1924 | 1924 | ✓ |
| Bridge Type | Mixed Truss | Through Truss | ✗ |
| Num Spans | 5 | — | ⚠ |
| Total Length | 548 | — | ⚠ |
| Longest Span | 149 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | riveted | — | ⚠ |
| Builder | Vincennes Bridge Co. | — | ⚠ |
| Curb Width | 20 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
All surveys vs. bridge record
2 surveys · 44 fields
| Field | Bridge | 2026 | 2007 |
|---|---|---|---|
| NBI No | 01414 | 01414 ✓ | — |
| Structure No | 36E0145N3210007 | 36E0145N3210007 ✓ | 36E0145N3210007 ✓ |
| ODOT BRKEY | — | 1414 | — |
| County | Kay | Kay ✓ | Kay ✓ |
| Facility Carried | Blackwell Ave / Old SH-11 | E0145 (BLACKWELL) ✗ | — |
| Feature | Chikaskia River | CHIKASKIA RIVER ✓ | — |
| Alt Name | — | 36E0145N3210007 | — |
| Description | — | 3-142ft. HI TRUSS SPANS | — |
| Year Built | 1924 | 1924 ✓ | 1924 ✓ |
| Latitude | 36.8042500 | 36.80421389 ✗ | — |
| Longitude | -97.2696389 | -97.27053056 ✗ | — |
| Overall Length | — | 536.801 | — |
| Deck Width | — | 20.4 | — |
| Main Spans | — | 3 | — |
| Skew | — | 0 | — |
| Lanes | — | 2 | — |
| Roadway / Curb Width | — | 20 | 20 |
| Material | — | 3 - Steel | — |
| Design | — | Truss — Thru (10) | — |
| Span Type Main | — | Main span (M) | — |
| Deck Structure | — | Concrete cast-in-place (1) | — |
| Open / Closed | — | Closed (K) | — |
| Sufficiency | — | 16 | — |
| Structure Rating | — | Failed (0) | — |
| Deck Rating | — | Failed (0) | — |
| Super Rating | — | Failed (0) | — |
| Sub Rating | — | Failed (0) | — |
| Culvert Rating | — | Not applicable (N) | — |
| Owner | — | 02 - County Highway Agency | — |
| Custodian | — | 02 - County Highway Agency | — |
| Hwy System | — | 0 - Off Highway | — |
| Functional Class | — | 16 - Minor Arterial (Urban) | — |
| Bridge System | — | D | — |
| ADT | — | 300 | — |
| ADT Year | — | 2012 | — |
| Historical | — | 4 | — |
| Bridge Type | Through Truss | — | Mixed Truss ✗ |
| Num Spans | — | — | 5 |
| Total Length | — | — | 548 |
| Main / Longest Span | — | — | 149 |
| Builder Plate | — | — | No |
| Connections | — | — | riveted |
| Builder | — | — | Vincennes Bridge Co. |
| NR Eligible | — | — | No |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
