Bridge #116
Built 1921 (105 yrs ago)
Closed to traffic
Through Truss
Bridge #116
Through Truss
Built 1921
Built
1921
Type
Through Truss
Style
Parker
Identity & location
- NBI Number
- 016200000000000
- Structure Number
- 19E0706N3860000

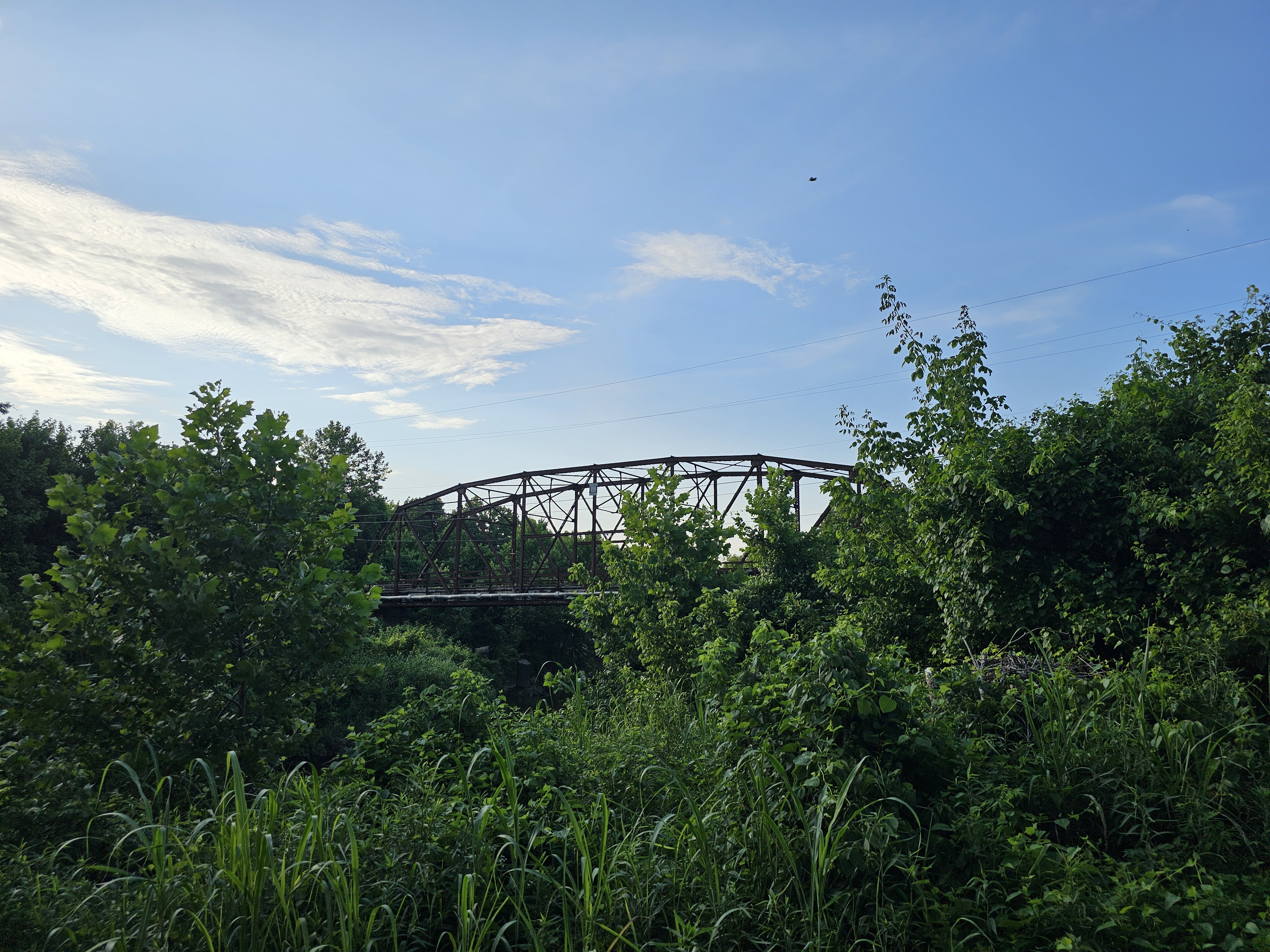

- Carries
- Old US-66 / S4260 Rd
- Crosses
- Rock Creek
- Year Built
- 1921
Structure
Parker Through Truss
- Bridge Type
- Through Truss
- Main Span Style
- Parker
Photos · 17
Unattached photos
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 01620 | 01620 | ✓ |
| Structure No | 19E0706N3860000 | 19E0706N3860000 | ✓ |
| ODOT BRKEY | 1620 | — | ⚠ |
| County | Creek | Creek | ✓ |
| Facility Carried | E0700 (OLD U.S. 66 | Old US-66 / S4260 Rd | ✗ |
| Feature | ROCK CREEK | Rock Creek | ✓ |
| Alt Name | 19E0706N3860000 | — | ⚠ |
| Description | 146ft. HI TRUSS RIVETED STEEL SPAN, NO SKEW, 18ft. CLR RDY W/STEEL RAILS, 1925 | — | ⚠ |
| Year Built | 1921 | 1921 | ✓ |
| Latitude | 36.00291111 | 35.9937500 | ✗ |
| Longitude | -96.13546667 | -96.1366111 | ✗ |
| Overall Length | 146.001 | — | ⚠ |
| Deck Width | 19.902 | — | ⚠ |
| Main Spans | 1 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.201 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Closed (K) | — | ⚠ |
| Sufficiency | 0 | — | ⚠ |
| Structure Rating | Failed (0) | — | ⚠ |
| Deck Rating | Failed (0) | — | ⚠ |
| Super Rating | Failed (0) | — | ⚠ |
| Sub Rating | Failed (0) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 04 - City or Municipal Hwy Agency | — | ⚠ |
| Custodian | 04 - City or Municipal Hwy Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | I | — | ⚠ |
| ADT | 250 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 1 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Creek | Creek | ✓ |
| Structure No | 19E0706N3860000 | 19E0706N3860000 | ✓ |
| Build Date | 1921 | 1921 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 3 | — | ⚠ |
| Total Length | 200 | — | ⚠ |
| Longest Span | 144 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | both | — | ⚠ |
| Builder | Concrete and Steel Construction Co. | — | ⚠ |
| Curb Width | 18 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Creek | Creek | ✓ |
| Structure Number | 19E0706N3860000 | 19E0706N3860000 | ✓ |
| Built Year | 1921 | 1921 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Parker | — | ⚠ |
| Num Spans | 3 | — | ⚠ |
| Total Length | 200 | — | ⚠ |
| Main Span Length | 144 | — | ⚠ |
| Builder Plate | Yes | — | ⚠ |
| Connections | both | — | ⚠ |
| Builder | Concrete and Steel Construction Co. | — | ⚠ |
| Curb Width | 18 | — | ⚠ |
| NRHP Listed | Yes | ✗ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
3 surveys · 46 fields
| Field | Bridge | 2026 | 2007 | 1993 |
|---|---|---|---|---|
| NBI No | 01620 | 01620 ✓ | — | — |
| Structure No | 19E0706N3860000 | 19E0706N3860000 ✓ | 19E0706N3860000 ✓ | 19E0706N3860000 ✓ |
| ODOT BRKEY | — | 1620 | — | — |
| County | Creek | Creek ✓ | Creek ✓ | Creek ✓ |
| Facility Carried | Old US-66 / S4260 Rd | E0700 (OLD U.S. 66 ✗ | — | — |
| Feature | Rock Creek | ROCK CREEK ✓ | — | — |
| Alt Name | — | 19E0706N3860000 | — | — |
| Description | — | 146ft. HI TRUSS RIVETED STEEL SPAN, NO SKEW, 18ft. CLR RDY W/STEEL RAILS, 1925 | — | — |
| Year Built | 1921 | 1921 ✓ | 1921 ✓ | 1921 ✓ |
| Latitude | 35.9937500 | 36.00291111 ✗ | — | — |
| Longitude | -96.1366111 | -96.13546667 ✗ | — | — |
| Overall Length | — | 146.001 | — | — |
| Deck Width | — | 19.902 | — | — |
| Main Spans | — | 1 | — | — |
| Skew | — | 0 | — | — |
| Lanes | — | 2 | — | — |
| Roadway / Curb Width | — | 17.201 | 18 | 18 |
| Material | — | 3 - Steel | — | — |
| Design | — | Truss — Thru (10) | — | — |
| Span Type Main | — | Main span (M) | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — |
| Open / Closed | — | Closed (K) | — | — |
| Sufficiency | — | 0 | — | — |
| Structure Rating | — | Failed (0) | — | — |
| Deck Rating | — | Failed (0) | — | — |
| Super Rating | — | Failed (0) | — | — |
| Sub Rating | — | Failed (0) | — | — |
| Culvert Rating | — | Not applicable (N) | — | — |
| Owner | — | 04 - City or Municipal Hwy Agency | — | — |
| Custodian | — | 04 - City or Municipal Hwy Agency | — | — |
| Hwy System | — | 0 - Off Highway | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — |
| Bridge System | — | I | — | — |
| ADT | — | 250 | — | — |
| ADT Year | — | 2022 | — | — |
| Historical | — | 1 | — | — |
| Bridge Type | Through Truss | — | Through Truss ✓ | Through Truss ✓ |
| Num Spans | — | — | 3 | 3 |
| Total Length | — | — | 200 | 200 |
| Main / Longest Span | — | — | 144 | 144 |
| Builder Plate | — | — | No | Yes |
| Connections | — | — | both | both |
| Builder | — | — | Concrete and Steel Construction Co. | Concrete and Steel Construction Co. |
| NR Eligible | — | — | No | — |
| Bridge Design | — | — | — | Parker |
| NRHP Listed | — | — | Yes ✗ |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
