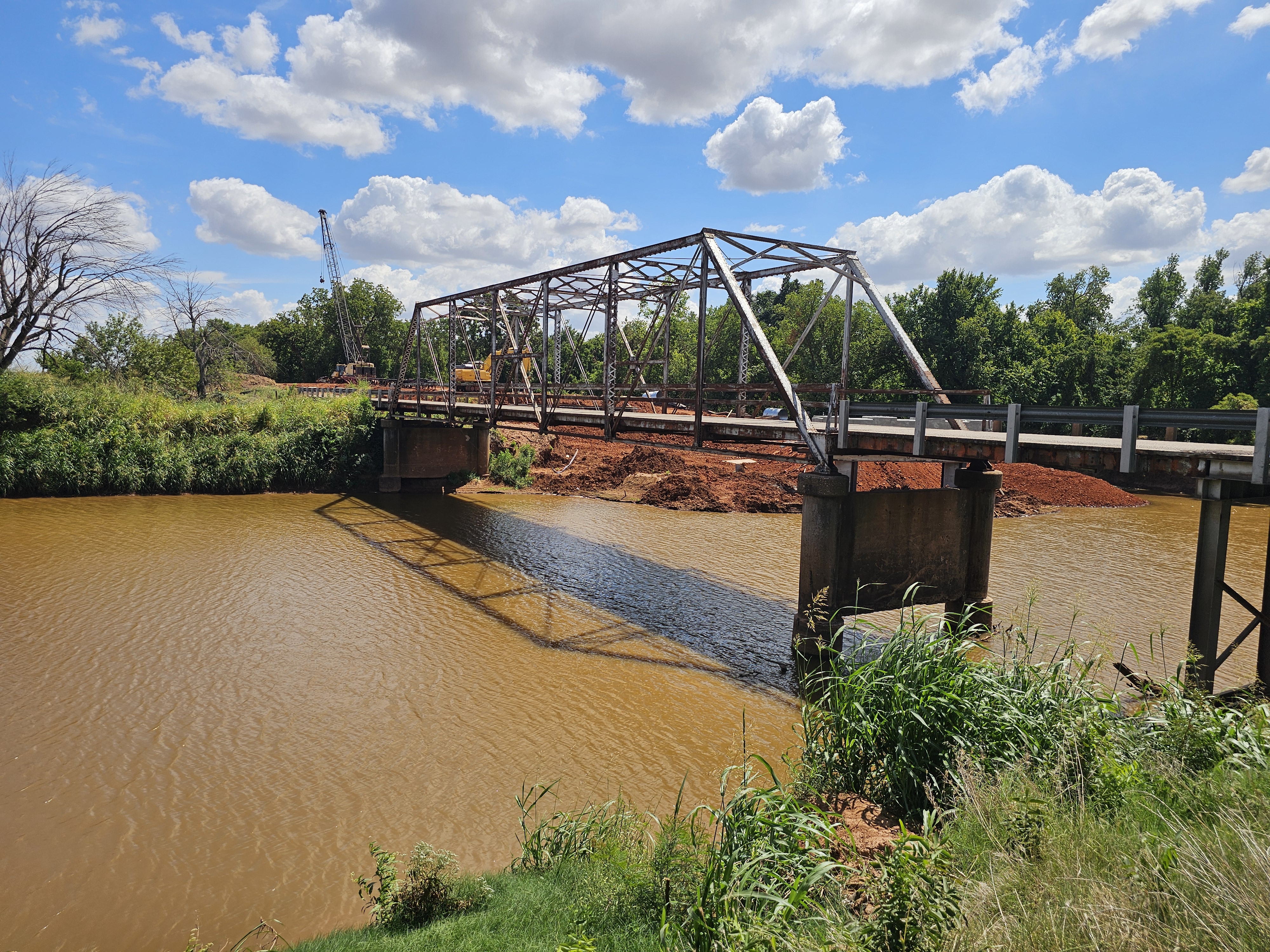

Bridge #84
Built 1929 (97 yrs ago)
Closed to traffic
Through Truss
Bridge #84
Through Truss
Built 1929
Built
1929
Type
Through Truss
Style
Pratt
Visits
1
Identity & location
- NBI Number
- 021630000000000
- Structure Number
- 37E0760N2870007
- Carries
- E0760 Rd
- Crosses
- Kingfisher Creek
- Year Built
- 1929
Structure
Pratt Through Truss
- Bridge Type
- Through Truss
- Main Span Style
- Pratt
Photos · 29
Unattached photos
Visit log · 1
-
Sep 1, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 02163 | 02163 | ✓ |
| Structure No | 37E0760N2870007 | 37E0760N2870007 | ✓ |
| ODOT BRKEY | 2163 | — | ⚠ |
| County | Kingfisher | Kingfisher | ✓ |
| Facility Carried | E0760 | E0760 Rd | ✗ |
| Feature | KINGFISHER CREEK | Kingfisher Creek | ✓ |
| Alt Name | 37E0760N2870007 | — | ⚠ |
| Description | 120ft. HI TRUSS SPAN | — | ⚠ |
| Year Built | 1928 | 1929 | ✗ |
| Latitude | 35.913903 | 35.9138333 | ✗ |
| Longitude | -97.879225 | -97.8790556 | ✗ |
| Overall Length | 267.3 | — | ⚠ |
| Deck Width | 17.5 | — | ⚠ |
| Main Spans | 1 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.5 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Corrugated steel (6) | — | ⚠ |
| Open / Closed | Closed (K) | — | ⚠ |
| Sufficiency | 15.2 | — | ⚠ |
| Structure Rating | Failed (0) | — | ⚠ |
| Deck Rating | Failed (0) | — | ⚠ |
| Super Rating | Failed (0) | — | ⚠ |
| Sub Rating | Failed (0) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 07 - Major Collector (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 330 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 2 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Kingfisher | Kingfisher | ✓ |
| NBI No | 02163 | 02163 | ✓ |
| Structure No | 37E0760N2870007 | 37E0760N2870007 | ✓ |
| Facility Carried | E0760 | E0760 Rd | ✗ |
| Feature | KINGFISHER CREEK | — | ⚠ |
| Truss Type | Pratt Through Truss | Through Truss | ✗ |
| Year Built | 1929 | 1929 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | Yes | — | ⚠ |
| NRHP Criteria | Eligible (C) | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Kingfisher | Kingfisher | ✓ |
| Structure No | 37E0760N2870007 | 37E0760N2870007 | ✓ |
| Build Date | 1929 | 1929 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 5 | — | ⚠ |
| Total Length | 266 | — | ⚠ |
| Longest Span | 110 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | both | — | ⚠ |
| Builder | Virginia Bridge Co. | — | ⚠ |
| Curb Width | 17 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Kingfisher | Kingfisher | ✓ |
| Structure Number | 37E0760N2870007 | 37E0760N2870007 | ✓ |
| Built Year | 1929 | 1929 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Pratt | — | ⚠ |
| Num Spans | 5 | — | ⚠ |
| Total Length | 266 | — | ⚠ |
| Main Span Length | 110 | — | ⚠ |
| Builder Plate | Yes | — | ⚠ |
| Connections | both | — | ⚠ |
| Builder | Virginia Bridge Co. | — | ⚠ |
| Curb Width | 17 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 47 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 02163 | 02163 ✓ | 02163 ✓ | — | — |
| Structure No | 37E0760N2870007 | 37E0760N2870007 ✓ | 37E0760N2870007 ✓ | 37E0760N2870007 ✓ | 37E0760N2870007 ✓ |
| ODOT BRKEY | — | 2163 | — | — | — |
| County | Kingfisher | Kingfisher ✓ | Kingfisher ✓ | Kingfisher ✓ | Kingfisher ✓ |
| Facility Carried | E0760 Rd | E0760 ✗ | E0760 ✗ | — | — |
| Feature | Kingfisher Creek | KINGFISHER CREEK ✓ | KINGFISHER CREEK ✓ | — | — |
| Alt Name | — | 37E0760N2870007 | — | — | — |
| Description | — | 120ft. HI TRUSS SPAN | — | — | — |
| Year Built | 1929 | 1928 ✗ | 1929 ✓ | 1929 ✓ | 1929 ✓ |
| Latitude | 35.9138333 | 35.913903 ✗ | — | — | — |
| Longitude | -97.8790556 | -97.879225 ✗ | — | — | — |
| Overall Length | — | 267.3 | — | — | — |
| Deck Width | — | 17.5 | — | — | — |
| Main Spans | — | 1 | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 17.5 | — | 17 | 17 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Corrugated steel (6) | — | — | — |
| Open / Closed | — | Closed (K) | — | — | — |
| Sufficiency | — | 15.2 | — | — | — |
| Structure Rating | — | Failed (0) | — | — | — |
| Deck Rating | — | Failed (0) | — | — | — |
| Super Rating | — | Failed (0) | — | — | — |
| Sub Rating | — | Failed (0) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 07 - Major Collector (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 330 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 2 | — | — | — |
| Truss Type | Through Truss | — | Pratt Through Truss ✗ | Through Truss ✓ | Through Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | Yes | No | — |
| NRHP Criteria | — | — | Eligible (C) | — | — |
| Num Spans | — | — | — | 5 | 5 |
| Total Length | — | — | — | 266 | 266 |
| Main / Longest Span | — | — | — | 110 | 110 |
| Builder Plate | — | — | — | No | Yes |
| Connections | — | — | — | both | both |
| Builder | — | — | — | Virginia Bridge Co. | Virginia Bridge Co. |
| Bridge Design | — | — | — | — | Pratt |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
