5752C over Caney River
Built 1948 (78 yrs ago)
Closed to traffic
Through Truss
5752C over Caney River
Through Truss
Built 1948
606.00 ft
Built
1948
Type
Through Truss
Style
Parker
Length
606.00 ft
Main span
160.00 ft
Spans
2
Visits
1
About

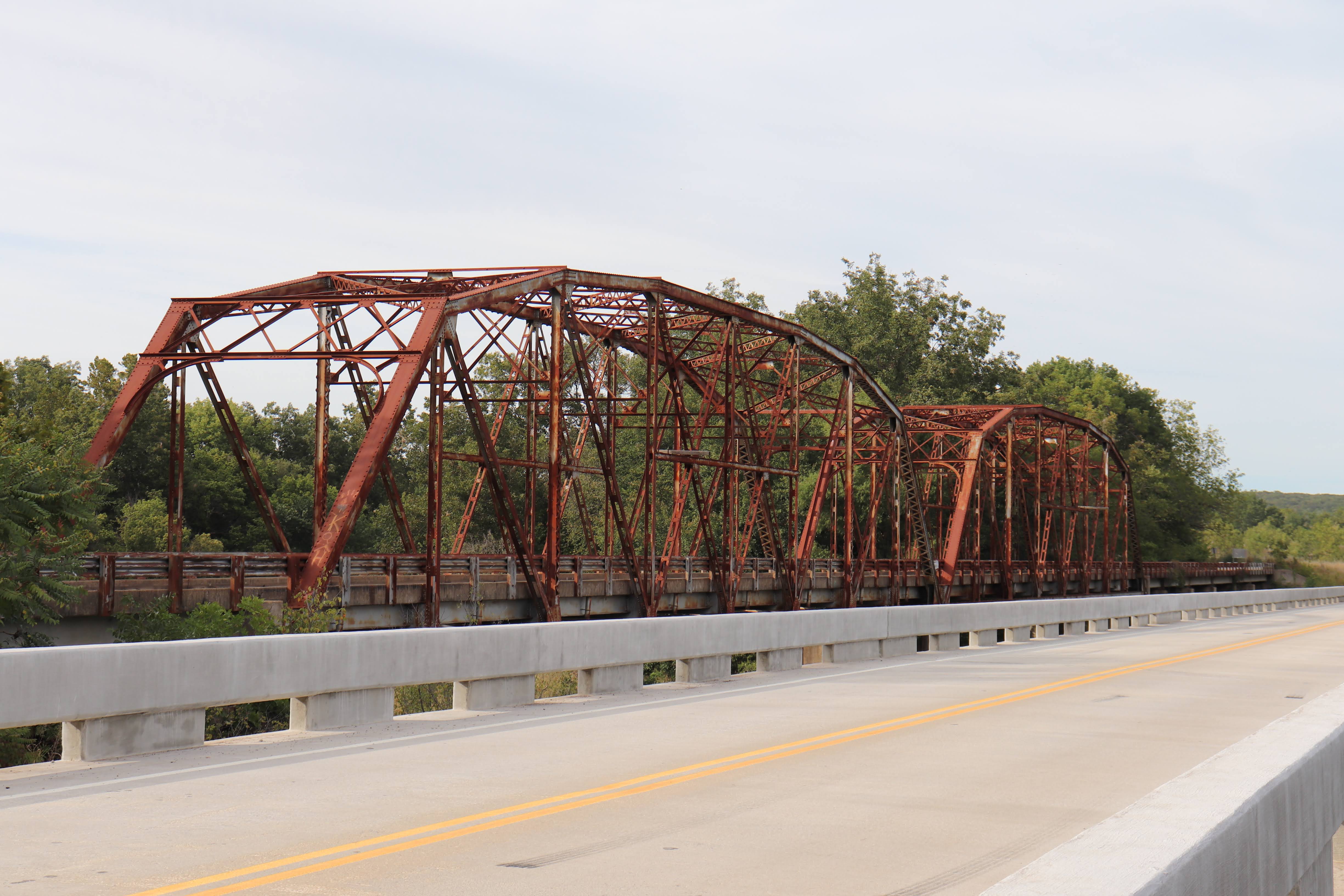

8 Panel rivited Parker Through Truss
Identity & location
- NBI Number
- 109630000000000
- Structure Number
- 57N3768E0010006
- Carries
- 5752C
- Crosses
- Caney River
- Year Built
- 1948
Structure
2 × 160.00ft Parker Through Truss spans (8 panels), 606.00ft overall
- Bridge Type
- Through Truss
- Main Span Style
- Parker
- Overall Length
- 606.00 ft
- Main Span Length
- 160.00 ft
- Deck Width
- 17.10 ft
- Clearance
- 15.00 ft
- Main Spans
- 2
- Main Span Panels
- 8
Photos · 69
Unattached photos
Visit log · 1
-
Sep 28, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 10963 | 10963 | ✓ |
| Structure No | 57N3768E0010006 | 57N3768E0010006 | ✓ |
| ODOT BRKEY | 10963 | — | ⚠ |
| County | Osage | Osage | ✓ |
| Facility Carried | 5752C | 5752C | ✓ |
| Feature | CANEY RIVER | Caney River | ✓ |
| Alt Name | 57N3768E0010006 | — | ⚠ |
| Description | 2-THRU OVERHEAD TRUSSES,7-CON | 8 Panel rivited Parker Through Truss | ✗ |
| Year Built | 1948 | 1948 | ✓ |
| Latitude | 36.99405 | 36.9940556 | ✗ |
| Longitude | -96.277514 | -96.2775278 | ✗ |
| Overall Length | 605 | 606.00 | ✗ |
| Deck Width | 17.999 | 17.10 | ✗ |
| Main Spans | 2 | 2 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.06 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 55.7 | — | ⚠ |
| Structure Rating | Fair (5) | — | ⚠ |
| Deck Rating | Satisfactory (6) | — | ⚠ |
| Super Rating | Fair (5) | — | ⚠ |
| Sub Rating | Fair (5) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 07 - Major Collector (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 104 | — | ⚠ |
| ADT Year | 2020 | — | ⚠ |
| Historical | 2 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| NBI No | 10963 | 10963 | ✓ |
| Structure No | 57N3768E0010006 | 57N3768E0010006 | ✓ |
| Facility Carried | 5752C | 5752C | ✓ |
| Feature | CANEY RIVER | — | ⚠ |
| Truss Type | Parker Through Truss | Through Truss | ✗ |
| Year Built | 1948 | 1948 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | Yes | — | ⚠ |
| NRHP Criteria | Eligible (C) | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure No | 57N3768E0010006 | 57N3768E0010006 | ✓ |
| Build Date | 1948 | 1948 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 9 | 2 | ✗ |
| Total Length | 606 | 606.00 | ✗ |
| Longest Span | 160 | 160.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | Tway, R. R. , Inc. | — | ⚠ |
| Curb Width | 17 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure Number | 57N3768E0010006 | 57N3768E0010006 | ✓ |
| Built Year | 1948 | 1948 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Parker | — | ⚠ |
| Num Spans | 9 | 2 | ✗ |
| Total Length | 606 | 606.00 | ✗ |
| Main Span Length | 160 | 160.00 | ✗ |
| Builder Plate | Yes | ✗ | |
| Connections | riveted | — | ⚠ |
| Builder | Tway, R. R., Inc. | — | ⚠ |
| Curb Width | 17 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 47 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 10963 | 10963 ✓ | 10963 ✓ | — | — |
| Structure No | 57N3768E0010006 | 57N3768E0010006 ✓ | 57N3768E0010006 ✓ | 57N3768E0010006 ✓ | 57N3768E0010006 ✓ |
| ODOT BRKEY | — | 10963 | — | — | — |
| County | Osage | Osage ✓ | Osage ✓ | Osage ✓ | Osage ✓ |
| Facility Carried | 5752C | 5752C ✓ | 5752C ✓ | — | — |
| Feature | Caney River | CANEY RIVER ✓ | CANEY RIVER ✓ | — | — |
| Alt Name | — | 57N3768E0010006 | — | — | — |
| Description | 8 Panel rivited Parker Through Truss | 2-THRU OVERHEAD TRUSSES,7-CON ✗ | — | — | — |
| Year Built | 1948 | 1948 ✓ | 1948 ✓ | 1948 ✓ | 1948 ✓ |
| Latitude | 36.9940556 | 36.99405 ✗ | — | — | — |
| Longitude | -96.2775278 | -96.277514 ✗ | — | — | — |
| Overall Length | 606.00 | 605 ✗ | — | — | — |
| Deck Width | 17.10 | 17.999 ✗ | — | — | — |
| Main Spans | 2 | 2 ✓ | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 17.06 | — | 17 | 17 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 55.7 | — | — | — |
| Structure Rating | — | Fair (5) | — | — | — |
| Deck Rating | — | Satisfactory (6) | — | — | — |
| Super Rating | — | Fair (5) | — | — | — |
| Sub Rating | — | Fair (5) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 07 - Major Collector (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 104 | — | — | — |
| ADT Year | — | 2020 | — | — | — |
| Historical | — | 2 | — | — | — |
| Truss Type | Through Truss | — | Parker Through Truss ✗ | Through Truss ✓ | Through Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | Yes | No | — |
| NRHP Criteria | — | — | Eligible (C) | — | — |
| Num Spans | 2 | — | — | 9 ✗ | 9 ✗ |
| Total Length | 606.00 | — | — | 606 ✗ | 606 ✗ |
| Main / Longest Span | 160.00 | — | — | 160 ✗ | 160 ✗ |
| Builder Plate | — | — | No ✓ | Yes ✗ | |
| Connections | — | — | — | riveted | riveted |
| Builder | — | — | — | Tway, R. R. , Inc. | Tway, R. R., Inc. |
| Bridge Design | — | — | — | — | Parker |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
