N3820 over Pond Creek
In service since 1936 (90 yrs)
Through Truss
N3820 over Pond Creek
Through Truss
Built 1936
148.00 ft
Built
1936
Type
Through Truss
Style
Parker
Length
148.00 ft
Main span
143.10 ft
Spans
1
Visits
1
About

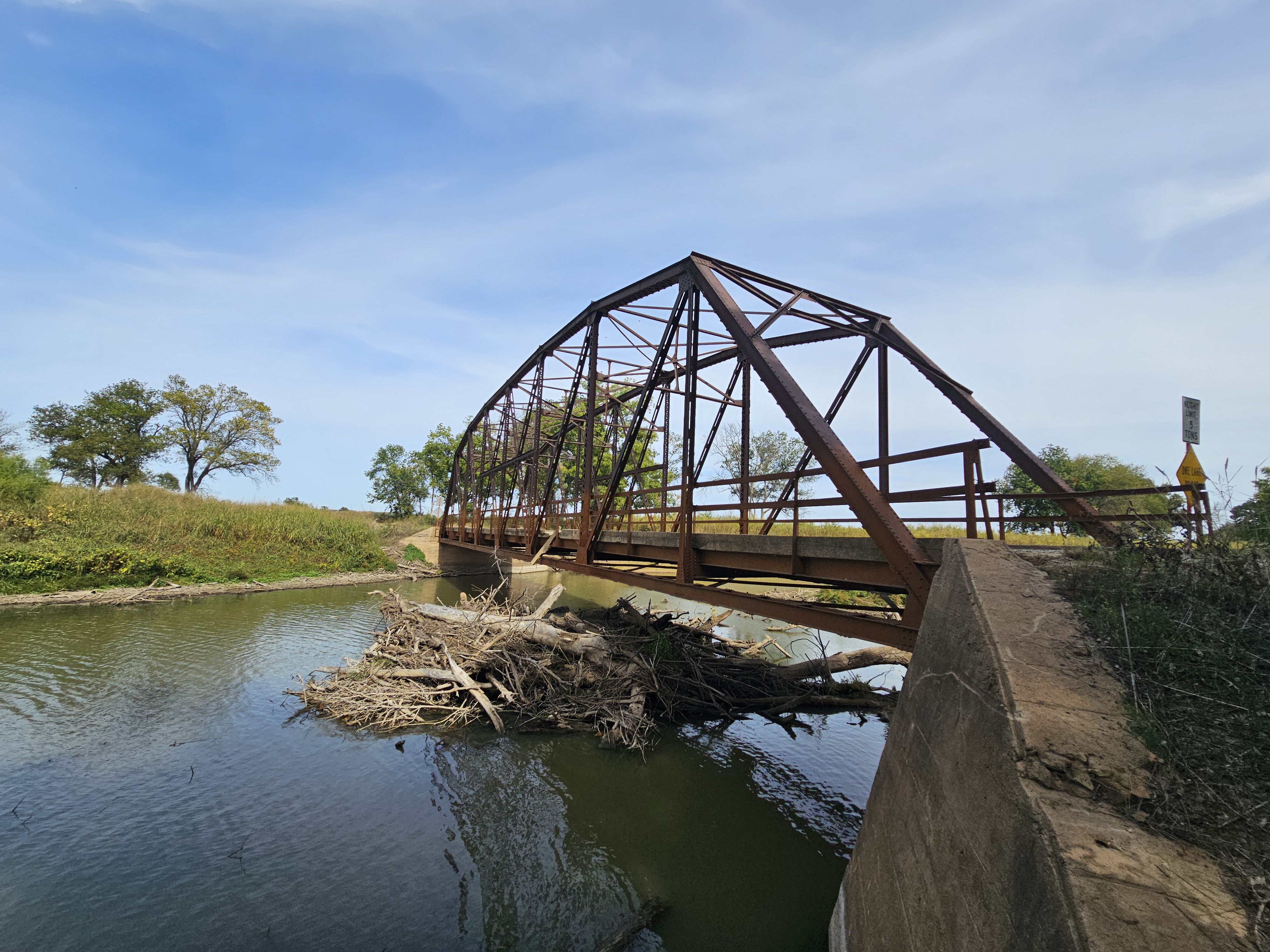

8 panel rivited parker through truss
Identity & location
- NBI Number
- 050150000000000
- Structure Number
- 57N3820E0050007
- Carries
- N3820
- Crosses
- Pond Creek
- Year Built
- 1936
Structure
1 × 143.10ft Parker Through Truss span (8 panels)
- Bridge Type
- Through Truss
- Main Span Style
- Parker
- Overall Length
- 148.00 ft
- Main Span Length
- 143.10 ft
- Deck Width
- 17.10 ft
- Clearance
- 15.10 ft
- Main Spans
- 1
- Main Span Panels
- 8
Photos · 32
Unattached photos
Visit log · 1
-
Sep 28, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 05015 | 05015 | ✓ |
| Structure No | 57N3820E0050007 | 57N3820E0050007 | ✓ |
| ODOT BRKEY | 5015 | — | ⚠ |
| County | Osage | Osage | ✓ |
| Facility Carried | N3820 | N3820 | ✓ |
| Feature | POND CREEK | Pond Creek | ✓ |
| Alt Name | 57N3820E0050009 | — | ⚠ |
| Description | 149ft. HI. TRUSS SPAN | 8 panel rivited parker through truss | ✗ |
| Year Built | 1936 | 1936 | ✓ |
| Latitude | 36.929336 | 36.9293333 | ✗ |
| Longitude | -96.188808 | -96.1888056 | ✗ |
| Overall Length | 147.966 | 148.00 | ✗ |
| Deck Width | 17.598 | 17.10 | ✗ |
| Main Spans | 1 | 1 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 16.699 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 16.8 | — | ⚠ |
| Structure Rating | Critical (2) | — | ⚠ |
| Deck Rating | Poor (4) | — | ⚠ |
| Super Rating | Poor (4) | — | ⚠ |
| Sub Rating | Poor (4) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 75 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| NBI No | 05015 | 05015 | ✓ |
| Structure No | 57N3820E0050007 | 57N3820E0050007 | ✓ |
| Facility Carried | N3820 | N3820 | ✓ |
| Feature | POND CREEK | — | ⚠ |
| Truss Type | Parker Through Truss | Through Truss | ✗ |
| Year Built | 1936 | 1936 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | No | — | ⚠ |
| NRHP Criteria | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure No | 57N3820E0050007 | 57N3820E0050007 | ✓ |
| Build Date | 1936 | 1936 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 149 | 148.00 | ✗ |
| Longest Span | 149 | 143.10 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 17 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure Number | 57N3820E0050007 | 57N3820E0050007 | ✓ |
| Built Year | 1936 | 1936 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Parker | — | ⚠ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 149 | 148.00 | ✗ |
| Main Span Length | 149 | 143.10 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Curb Width | 17 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 45 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 05015 | 05015 ✓ | 05015 ✓ | — | — |
| Structure No | 57N3820E0050007 | 57N3820E0050007 ✓ | 57N3820E0050007 ✓ | 57N3820E0050007 ✓ | 57N3820E0050007 ✓ |
| ODOT BRKEY | — | 5015 | — | — | — |
| County | Osage | Osage ✓ | Osage ✓ | Osage ✓ | Osage ✓ |
| Facility Carried | N3820 | N3820 ✓ | N3820 ✓ | — | — |
| Feature | Pond Creek | POND CREEK ✓ | POND CREEK ✓ | — | — |
| Alt Name | — | 57N3820E0050009 | — | — | — |
| Description | 8 panel rivited parker through truss | 149ft. HI. TRUSS SPAN ✗ | — | — | — |
| Year Built | 1936 | 1936 ✓ | 1936 ✓ | 1936 ✓ | 1936 ✓ |
| Latitude | 36.9293333 | 36.929336 ✗ | — | — | — |
| Longitude | -96.1888056 | -96.188808 ✗ | — | — | — |
| Overall Length | 148.00 | 147.966 ✗ | — | — | — |
| Deck Width | 17.10 | 17.598 ✗ | — | — | — |
| Main Spans | 1 | 1 ✓ | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 16.699 | — | 17 | 17 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 16.8 | — | — | — |
| Structure Rating | — | Critical (2) | — | — | — |
| Deck Rating | — | Poor (4) | — | — | — |
| Super Rating | — | Poor (4) | — | — | — |
| Sub Rating | — | Poor (4) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 75 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 4 | — | — | — |
| Truss Type | Through Truss | — | Parker Through Truss ✗ | Through Truss ✓ | Through Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | No | No | — |
| Num Spans | 1 | — | — | 1 ✓ | 1 ✓ |
| Total Length | 148.00 | — | — | 149 ✗ | 149 ✗ |
| Main / Longest Span | 143.10 | — | — | 149 ✗ | 149 ✗ |
| Builder Plate | — | — | No ✓ | No ✓ | |
| Connections | — | — | — | riveted | riveted |
| Bridge Design | — | — | — | — | Parker |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
