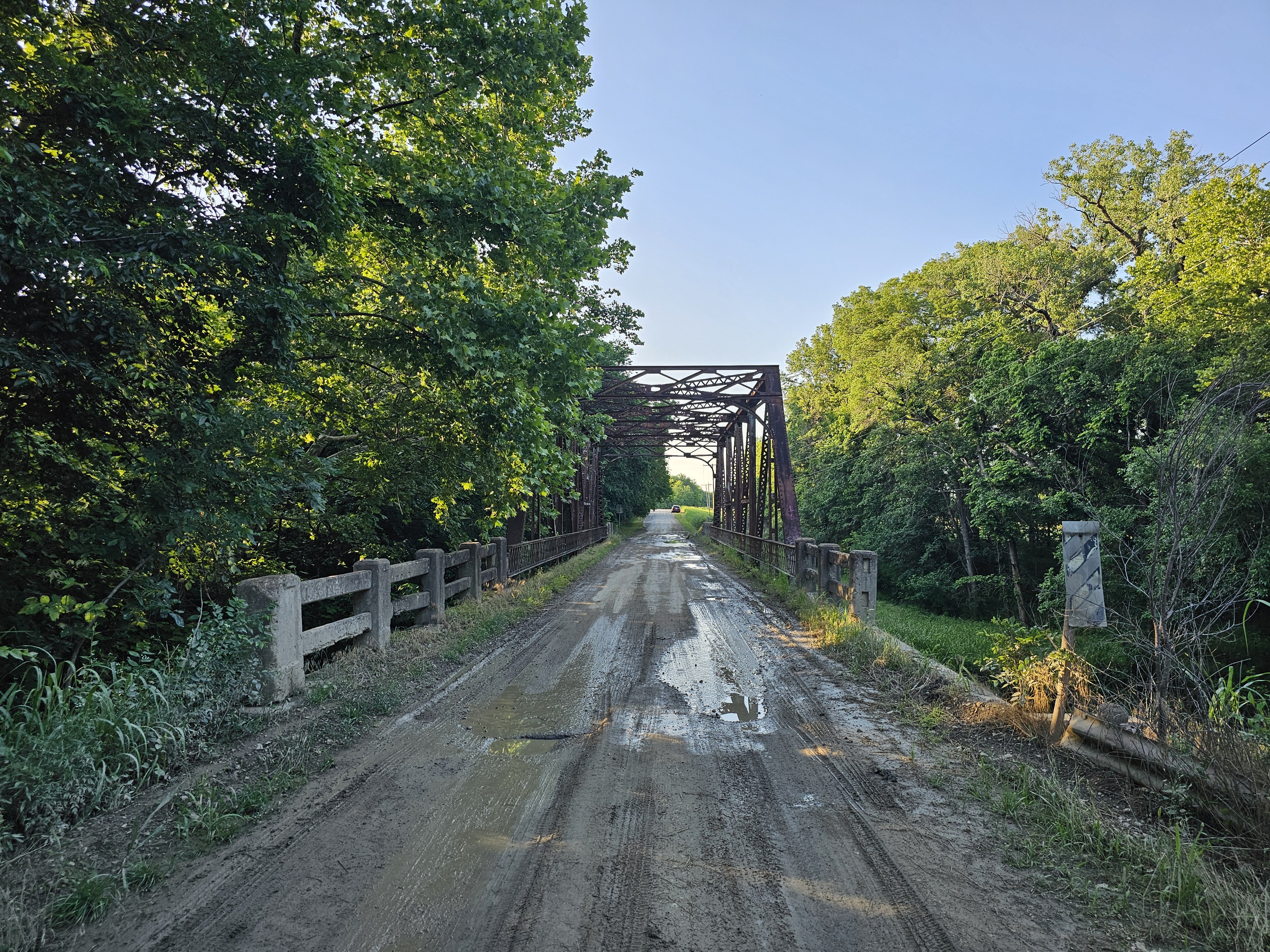

Old SH-16 over Hickory Creek
In service since 1930 (96 yrs)
Through Truss
Old SH-16 over Hickory Creek
Through Truss
Built 1930
Built
1930
Type
Through Truss
Style
Pratt
Visits
1
Identity & location
- NBI Number
- 032010000000000
- Structure Number
- 53N4135E0080008
- Carries
- Old SH-16 / Old Highway Road
- Crosses
- Hickory Creek
- Year Built
- 1930
Structure
Pratt Through Truss
- Bridge Type
- Through Truss
- Main Span Style
- Pratt
Photos · 25
Unattached photos
Visit log · 1
-
Jun 1, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 03201 | 03201 | ✓ |
| Structure No | 53N4135E0080008 | 53N4135E0080008 | ✓ |
| ODOT BRKEY | 3201 | — | ⚠ |
| County | Nowata | Nowata | ✓ |
| Facility Carried | N4135 | Old SH-16 / Old Highway Road | ✗ |
| Feature | HICKORY CREEK | Hickory Creek | ✓ |
| Alt Name | 53N4135E0080008 | — | ⚠ |
| Description | 96ft. HI TRUSS & 2-32ft. I-BM STL BM APP. SPANS | — | ⚠ |
| Year Built | 1930 | 1930 | ✓ |
| Latitude | 36.890572 | 36.8907778 | ✗ |
| Longitude | -95.637144 | -95.6372500 | ✗ |
| Overall Length | 163.999 | — | ⚠ |
| Deck Width | 18.999 | — | ⚠ |
| Main Spans | 1 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.999 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 37.9 | — | ⚠ |
| Structure Rating | Critical (2) | — | ⚠ |
| Deck Rating | Fair (5) | — | ⚠ |
| Super Rating | Poor (4) | — | ⚠ |
| Sub Rating | Fair (5) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 100 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Nowata | Nowata | ✓ |
| NBI No | 03201 | 03201 | ✓ |
| Structure No | 53N4135E0080008 | 53N4135E0080008 | ✓ |
| Facility Carried | N4135 | Old SH-16 / Old Highway Road | ✗ |
| Feature | HICKORY CREEK | — | ⚠ |
| Truss Type | Modified Pratt Through Truss | Through Truss | ✗ |
| Year Built | 1930 | 1930 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | No | — | ⚠ |
| NRHP Criteria | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Nowata | Nowata | ✓ |
| Structure No | 53N4135E0080008 | 53N4135E0080008 | ✓ |
| Build Date | 1930 | 1930 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 3 | — | ⚠ |
| Total Length | 164 | — | ⚠ |
| Longest Span | 100 | — | ⚠ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 18 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Nowata | Nowata | ✓ |
| Structure Number | 53N4135E0080008 | 53N4135E0080008 | ✓ |
| Built Year | 1930 | 1930 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Modified Pratt | — | ⚠ |
| Num Spans | 3 | — | ⚠ |
| Total Length | 164 | — | ⚠ |
| Main Span Length | 100 | — | ⚠ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Curb Width | 18 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 45 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 03201 | 03201 ✓ | 03201 ✓ | — | — |
| Structure No | 53N4135E0080008 | 53N4135E0080008 ✓ | 53N4135E0080008 ✓ | 53N4135E0080008 ✓ | 53N4135E0080008 ✓ |
| ODOT BRKEY | — | 3201 | — | — | — |
| County | Nowata | Nowata ✓ | Nowata ✓ | Nowata ✓ | Nowata ✓ |
| Facility Carried | Old SH-16 / Old Highway Road | N4135 ✗ | N4135 ✗ | — | — |
| Feature | Hickory Creek | HICKORY CREEK ✓ | HICKORY CREEK ✓ | — | — |
| Alt Name | — | 53N4135E0080008 | — | — | — |
| Description | — | 96ft. HI TRUSS & 2-32ft. I-BM STL BM APP. SPANS | — | — | — |
| Year Built | 1930 | 1930 ✓ | 1930 ✓ | 1930 ✓ | 1930 ✓ |
| Latitude | 36.8907778 | 36.890572 ✗ | — | — | — |
| Longitude | -95.6372500 | -95.637144 ✗ | — | — | — |
| Overall Length | — | 163.999 | — | — | — |
| Deck Width | — | 18.999 | — | — | — |
| Main Spans | — | 1 | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 17.999 | — | 18 | 18 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 37.9 | — | — | — |
| Structure Rating | — | Critical (2) | — | — | — |
| Deck Rating | — | Fair (5) | — | — | — |
| Super Rating | — | Poor (4) | — | — | — |
| Sub Rating | — | Fair (5) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 100 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 4 | — | — | — |
| Truss Type | Through Truss | — | Modified Pratt Through Truss ✗ | Through Truss ✓ | Through Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | No | No | — |
| Num Spans | — | — | — | 3 | 3 |
| Total Length | — | — | — | 164 | 164 |
| Main / Longest Span | — | — | — | 100 | 100 |
| Builder Plate | — | — | No ✓ | No ✓ | |
| Connections | — | — | — | riveted | riveted |
| Bridge Design | — | — | — | — | Modified Pratt |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
