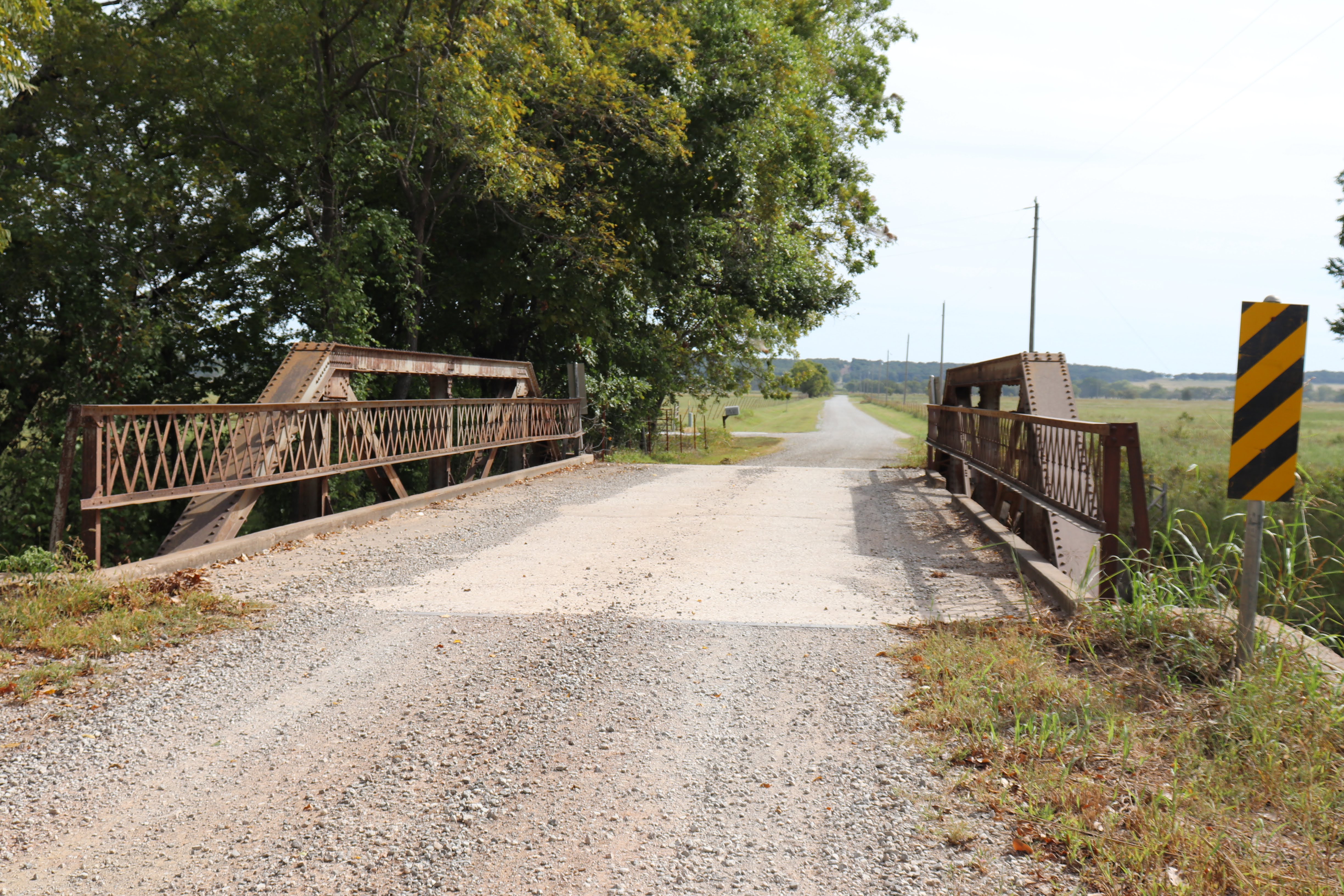

E0340 over Hominy Creek
In service since 1940 (86 yrs)
Pony Truss
E0340 over Hominy Creek
Pony Truss
Built 1940
64.00 ft
Built
1940
Type
Pony Truss
Style
Pratt
Length
64.00 ft
Main span
60.00 ft
Spans
1
Visits
1
About
Pratt pony truss
Identity & location
- NBI Number
- 092610000000000
- Structure Number
- 57E0340N3700005
- Carries
- E0340
- Crosses
- Hominy Creek
- Year Built
- 1940
Structure
1 × 60.00ft Pratt Pony Truss span
- Bridge Type
- Pony Truss
- Main Span Style
- Pratt
- Overall Length
- 64.00 ft
- Main Span Length
- 60.00 ft
- Deck Width
- 18.00 ft
- Main Spans
- 1
Photos · 26
Unattached photos
Visit log · 1
-
Sep 28, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 09261 | 09261 | ✓ |
| Structure No | 57E0340N3700005 | 57E0340N3700005 | ✓ |
| ODOT BRKEY | 9261 | — | ⚠ |
| County | Osage | Osage | ✓ |
| Facility Carried | E0340 | E0340 | ✓ |
| Feature | HOMINY CREEK | Hominy Creek | ✓ |
| Alt Name | 57E0340N3700005 | — | ⚠ |
| Description | 63ft. PONY TRUSS SPAN | Pratt pony truss | ✗ |
| Year Built | 1940 | 1940 | ✓ |
| Latitude | 36.52098333 | 36.5210278 | ✗ |
| Longitude | -96.39905 | -96.3989722 | ✗ |
| Overall Length | 62.999 | 64.00 | ✗ |
| Deck Width | 18.701 | 18.00 | ✗ |
| Main Spans | 1 | 1 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.999 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 68.1 | — | ⚠ |
| Structure Rating | Fair (5) | — | ⚠ |
| Deck Rating | Fair (5) | — | ⚠ |
| Super Rating | Fair (5) | — | ⚠ |
| Sub Rating | Fair (5) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 50 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 5 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| NBI No | 09261 | 09261 | ✓ |
| Structure No | 57E0340N3700005 | 57E0340N3700005 | ✓ |
| Facility Carried | E0340 | E0340 | ✓ |
| Feature | HOMINY CREEK | — | ⚠ |
| Truss Type | Pratt Pony Truss | Pony Truss | ✗ |
| Year Built | 1940 | 1940 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | No | — | ⚠ |
| NRHP Criteria | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure No | 57E0340N3700005 | 57E0340N3700005 | ✓ |
| Build Date | 1940 | 1940 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 64 | 64.00 | ✗ |
| Longest Span | 60 | 60.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 18 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
All surveys vs. bridge record
3 surveys · 44 fields
| Field | Bridge | 2026 | 2021 | 2007 |
|---|---|---|---|---|
| NBI No | 09261 | 09261 ✓ | 09261 ✓ | — |
| Structure No | 57E0340N3700005 | 57E0340N3700005 ✓ | 57E0340N3700005 ✓ | 57E0340N3700005 ✓ |
| ODOT BRKEY | — | 9261 | — | — |
| County | Osage | Osage ✓ | Osage ✓ | Osage ✓ |
| Facility Carried | E0340 | E0340 ✓ | E0340 ✓ | — |
| Feature | Hominy Creek | HOMINY CREEK ✓ | HOMINY CREEK ✓ | — |
| Alt Name | — | 57E0340N3700005 | — | — |
| Description | Pratt pony truss | 63ft. PONY TRUSS SPAN ✗ | — | — |
| Year Built | 1940 | 1940 ✓ | 1940 ✓ | 1940 ✓ |
| Latitude | 36.5210278 | 36.52098333 ✗ | — | — |
| Longitude | -96.3989722 | -96.39905 ✗ | — | — |
| Overall Length | 64.00 | 62.999 ✗ | — | — |
| Deck Width | 18.00 | 18.701 ✗ | — | — |
| Main Spans | 1 | 1 ✓ | — | — |
| Skew | — | 0 | — | — |
| Lanes | — | 2 | — | — |
| Roadway / Curb Width | — | 17.999 | — | 18 |
| Material | — | 3 - Steel | — | — |
| Design | — | Truss — Thru (10) | — | — |
| Span Type Main | — | Main span (M) | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — |
| Open / Closed | — | Posted for load (P) | — | — |
| Sufficiency | — | 68.1 | — | — |
| Structure Rating | — | Fair (5) | — | — |
| Deck Rating | — | Fair (5) | — | — |
| Super Rating | — | Fair (5) | — | — |
| Sub Rating | — | Fair (5) | — | — |
| Culvert Rating | — | Not applicable (N) | — | — |
| Owner | — | 02 - County Highway Agency | — | — |
| Custodian | — | 02 - County Highway Agency | — | — |
| Hwy System | — | 0 - Off Highway | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — |
| Bridge System | — | D | — | — |
| ADT | — | 50 | — | — |
| ADT Year | — | 2022 | — | — |
| Historical | — | 5 | — | — |
| Truss Type | Pony Truss | — | Pratt Pony Truss ✗ | Pony Truss ✓ |
| NRHP Listed | — | No ✓ | — | |
| NRHP Eligible | — | — | No | No |
| Num Spans | 1 | — | — | 1 ✓ |
| Total Length | 64.00 | — | — | 64 ✗ |
| Main / Longest Span | 60.00 | — | — | 60 ✗ |
| Builder Plate | — | — | No ✓ | |
| Connections | — | — | — | riveted |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
