Bridge #41
In service since 1926 (100 yrs)
Pony Truss
Bridge #41
Pony Truss
Built 1926
Built
1926
Type
Pony Truss
Style
Warren
Visits
1
Identity & location
- NBI Number
- 029960000000000
- Structure Number
- 60E0600N3190002

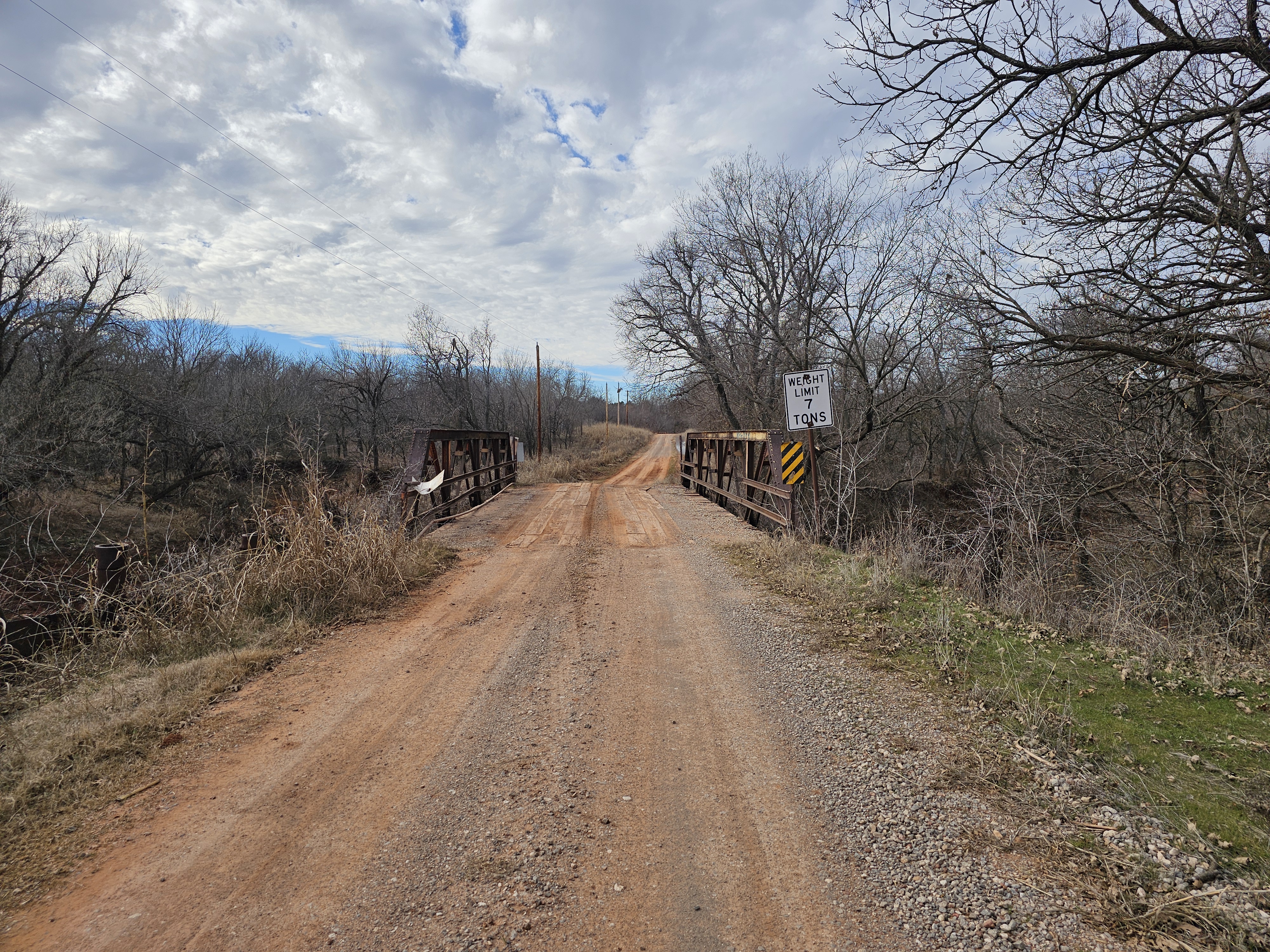

- Carries
- Lakeview Road
- Crosses
- Stillwater Creek
- Year Built
- 1926
Structure
Warren Pony Truss
- Bridge Type
- Pony Truss
- Main Span Style
- Warren
Photos · 11
Unattached photos
Visit log · 1
-
Dec 30, 2023by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 02996 | 02996 | ✓ |
| Structure No | 60E0600N3190002 | 60E0600N3190002 | ✓ |
| ODOT BRKEY | 2996 | — | ⚠ |
| County | Payne | Payne | ✓ |
| Facility Carried | E0600 | Lakeview Road | ✗ |
| Feature | STILLWATER CREEK | Stillwater Creek | ✓ |
| Alt Name | 60E0600N3190002 | — | ⚠ |
| Description | 53ft. RIVETED PONY TRUSS SPAN | — | ⚠ |
| Year Built | 1926 | 1926 | ✓ |
| Latitude | 36.144789 | 36.1448611 | ✗ |
| Longitude | -97.316208 | -97.3158889 | ✗ |
| Overall Length | 52.999 | — | ⚠ |
| Deck Width | 17.999 | — | ⚠ |
| Main Spans | 1 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.5 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Wood or Timber (8) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 29.9 | — | ⚠ |
| Structure Rating | Critical (2) | — | ⚠ |
| Deck Rating | Fair (5) | — | ⚠ |
| Super Rating | Poor (4) | — | ⚠ |
| Sub Rating | Poor (4) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 50 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 2 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Payne | Payne | ✓ |
| NBI No | 02996 | 02996 | ✓ |
| Structure No | 60E0600N3190002 | 60E0600N3190002 | ✓ |
| Facility Carried | E0600 | Lakeview Road | ✗ |
| Feature | STILLWATER CREEK | — | ⚠ |
| Truss Type | Warren with Verticals Pony Truss | Pony Truss | ✗ |
| Year Built | 1926 | 1926 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | Yes | — | ⚠ |
| NRHP Criteria | Eligible (C) | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Payne | Payne | ✓ |
| Structure No | 60E0600N3190002 | 60E0600N3190002 | ✓ |
| Build Date | 1926 | 1926 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Num Spans | 1 | — | ⚠ |
| Total Length | 52 | — | ⚠ |
| Longest Span | 52 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | riveted | — | ⚠ |
| Builder | Boardman Co. | — | ⚠ |
| Curb Width | 18 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Payne | Payne | ✓ |
| Structure Number | 60E0600N3190002 | 60E0600N3190002 | ✓ |
| Built Year | 1926 | 1926 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Bridge Design | Warren with Verticals | — | ⚠ |
| Num Spans | 1 | — | ⚠ |
| Total Length | 52 | — | ⚠ |
| Main Span Length | 52 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | riveted | — | ⚠ |
| Builder | Boardman Co. | — | ⚠ |
| Curb Width | 18 | — | ⚠ |
| NRHP Listed | Yes | ✗ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 47 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 02996 | 02996 ✓ | 02996 ✓ | — | — |
| Structure No | 60E0600N3190002 | 60E0600N3190002 ✓ | 60E0600N3190002 ✓ | 60E0600N3190002 ✓ | 60E0600N3190002 ✓ |
| ODOT BRKEY | — | 2996 | — | — | — |
| County | Payne | Payne ✓ | Payne ✓ | Payne ✓ | Payne ✓ |
| Facility Carried | Lakeview Road | E0600 ✗ | E0600 ✗ | — | — |
| Feature | Stillwater Creek | STILLWATER CREEK ✓ | STILLWATER CREEK ✓ | — | — |
| Alt Name | — | 60E0600N3190002 | — | — | — |
| Description | — | 53ft. RIVETED PONY TRUSS SPAN | — | — | — |
| Year Built | 1926 | 1926 ✓ | 1926 ✓ | 1926 ✓ | 1926 ✓ |
| Latitude | 36.1448611 | 36.144789 ✗ | — | — | — |
| Longitude | -97.3158889 | -97.316208 ✗ | — | — | — |
| Overall Length | — | 52.999 | — | — | — |
| Deck Width | — | 17.999 | — | — | — |
| Main Spans | — | 1 | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 17.5 | — | 18 | 18 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Wood or Timber (8) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 29.9 | — | — | — |
| Structure Rating | — | Critical (2) | — | — | — |
| Deck Rating | — | Fair (5) | — | — | — |
| Super Rating | — | Poor (4) | — | — | — |
| Sub Rating | — | Poor (4) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 50 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 2 | — | — | — |
| Truss Type | Pony Truss | — | Warren with Verticals Pony Truss ✗ | Pony Truss ✓ | Pony Truss ✓ |
| NRHP Listed | — | No ✓ | — | Yes ✗ | |
| NRHP Eligible | — | — | Yes | No | — |
| NRHP Criteria | — | — | Eligible (C) | — | — |
| Num Spans | — | — | — | 1 | 1 |
| Total Length | — | — | — | 52 | 52 |
| Main / Longest Span | — | — | — | 52 | 52 |
| Builder Plate | — | — | — | No | No |
| Connections | — | — | — | riveted | riveted |
| Builder | — | — | — | Boardman Co. | Boardman Co. |
| Bridge Design | — | — | — | — | Warren with Verticals |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
