Bridge #45
Built 1927 (99 yrs ago)
Closed to traffic
Pony Truss
Bridge #45
Pony Truss
Built 1927
Built
1927
Type
Pony Truss
Style
Parker
Visits
1
Identity & location
- NBI Number
- 019380000000000
- Structure Number
- 67N3560E1350006
- Carries

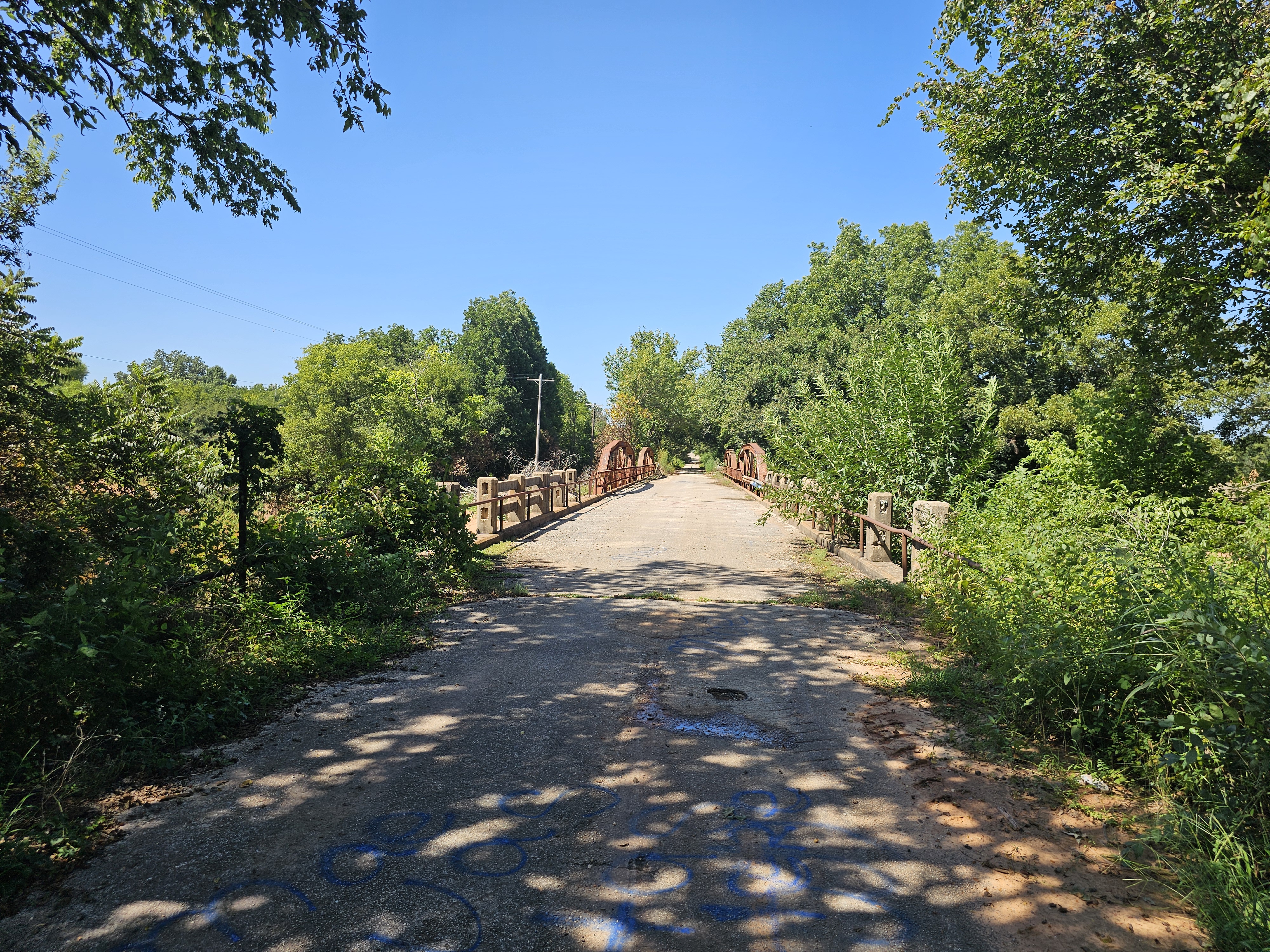

- Old SH-99
- Crosses
- Salt Creek
- Year Built
- 1927
Structure
Parker Pony Truss
- Bridge Type
- Pony Truss
- Main Span Style
- Parker
Photos · 11
Unattached photos
Visit log · 1
-
Aug 17, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 01938 | 01938 | ✓ |
| Structure No | 67N3560E1350006 | 67N3560E1350006 | ✓ |
| ODOT BRKEY | 1938 | — | ⚠ |
| County | Seminole | Seminole | ✓ |
| Facility Carried | N3560 | Old SH-99 | ✗ |
| Feature | SALT CREEK | Salt Creek | ✓ |
| Alt Name | 67N3560E1350006 | — | ⚠ |
| Description | 2-36 I-BM/2-84 TRUSS/2-36ft. STEEL I-BM SPANS BRIDGE/ROAD CLOSED | — | ⚠ |
| Year Built | 1927 | 1927 | ✓ |
| Latitude | 35.047722 | 35.0479444 | ✗ |
| Longitude | -96.67 | -96.6700556 | ✗ |
| Overall Length | 312.5 | — | ⚠ |
| Deck Width | 22.999 | — | ⚠ |
| Main Spans | 2 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 20 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Closed (K) | — | ⚠ |
| Sufficiency | 33.8 | — | ⚠ |
| Structure Rating | Failed (0) | — | ⚠ |
| Deck Rating | Satisfactory (6) | — | ⚠ |
| Super Rating | Serious (3) | — | ⚠ |
| Sub Rating | Fair (5) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 100 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Seminole | Seminole | ✓ |
| NBI No | 01938 | 01938 | ✓ |
| Structure No | 67N3560E1350006 | 67N3560E1350006 | ✓ |
| Facility Carried | N3560 | Old SH-99 | ✗ |
| Feature | SALT CREEK | — | ⚠ |
| Truss Type | Camelback Pony Truss | Pony Truss | ✗ |
| Year Built | 1927 | 1927 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | No | — | ⚠ |
| NRHP Criteria | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Seminole | Seminole | ✓ |
| Structure No | 67N3560E1350006 | 67N3560E1350006 | ✓ |
| Build Date | 1927 | 1927 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Num Spans | 6 | — | ⚠ |
| Total Length | 288 | — | ⚠ |
| Longest Span | 75 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 20 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Seminole | Seminole | ✓ |
| Structure Number | 67N3560E1350006 | 67N3560E1350006 | ✓ |
| Built Year | 1927 | 1927 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Bridge Design | Camelback | — | ⚠ |
| Num Spans | 6 | — | ⚠ |
| Total Length | 288 | — | ⚠ |
| Main Span Length | 75 | — | ⚠ |
| Builder Plate | No | — | ⚠ |
| Connections | riveted | — | ⚠ |
| Curb Width | 20 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 45 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 01938 | 01938 ✓ | 01938 ✓ | — | — |
| Structure No | 67N3560E1350006 | 67N3560E1350006 ✓ | 67N3560E1350006 ✓ | 67N3560E1350006 ✓ | 67N3560E1350006 ✓ |
| ODOT BRKEY | — | 1938 | — | — | — |
| County | Seminole | Seminole ✓ | Seminole ✓ | Seminole ✓ | Seminole ✓ |
| Facility Carried | Old SH-99 | N3560 ✗ | N3560 ✗ | — | — |
| Feature | Salt Creek | SALT CREEK ✓ | SALT CREEK ✓ | — | — |
| Alt Name | — | 67N3560E1350006 | — | — | — |
| Description | — | 2-36 I-BM/2-84 TRUSS/2-36ft. STEEL I-BM SPANS BRIDGE/ROAD CLOSED | — | — | — |
| Year Built | 1927 | 1927 ✓ | 1927 ✓ | 1927 ✓ | 1927 ✓ |
| Latitude | 35.0479444 | 35.047722 ✗ | — | — | — |
| Longitude | -96.6700556 | -96.67 ✗ | — | — | — |
| Overall Length | — | 312.5 | — | — | — |
| Deck Width | — | 22.999 | — | — | — |
| Main Spans | — | 2 | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 20 | — | 20 | 20 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Closed (K) | — | — | — |
| Sufficiency | — | 33.8 | — | — | — |
| Structure Rating | — | Failed (0) | — | — | — |
| Deck Rating | — | Satisfactory (6) | — | — | — |
| Super Rating | — | Serious (3) | — | — | — |
| Sub Rating | — | Fair (5) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 100 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 4 | — | — | — |
| Truss Type | Pony Truss | — | Camelback Pony Truss ✗ | Pony Truss ✓ | Pony Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | No | No | — |
| Num Spans | — | — | — | 6 | 6 |
| Total Length | — | — | — | 288 | 288 |
| Main / Longest Span | — | — | — | 75 | 75 |
| Builder Plate | — | — | — | No | No |
| Connections | — | — | — | riveted | riveted |
| Bridge Design | — | — | — | — | Camelback |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
