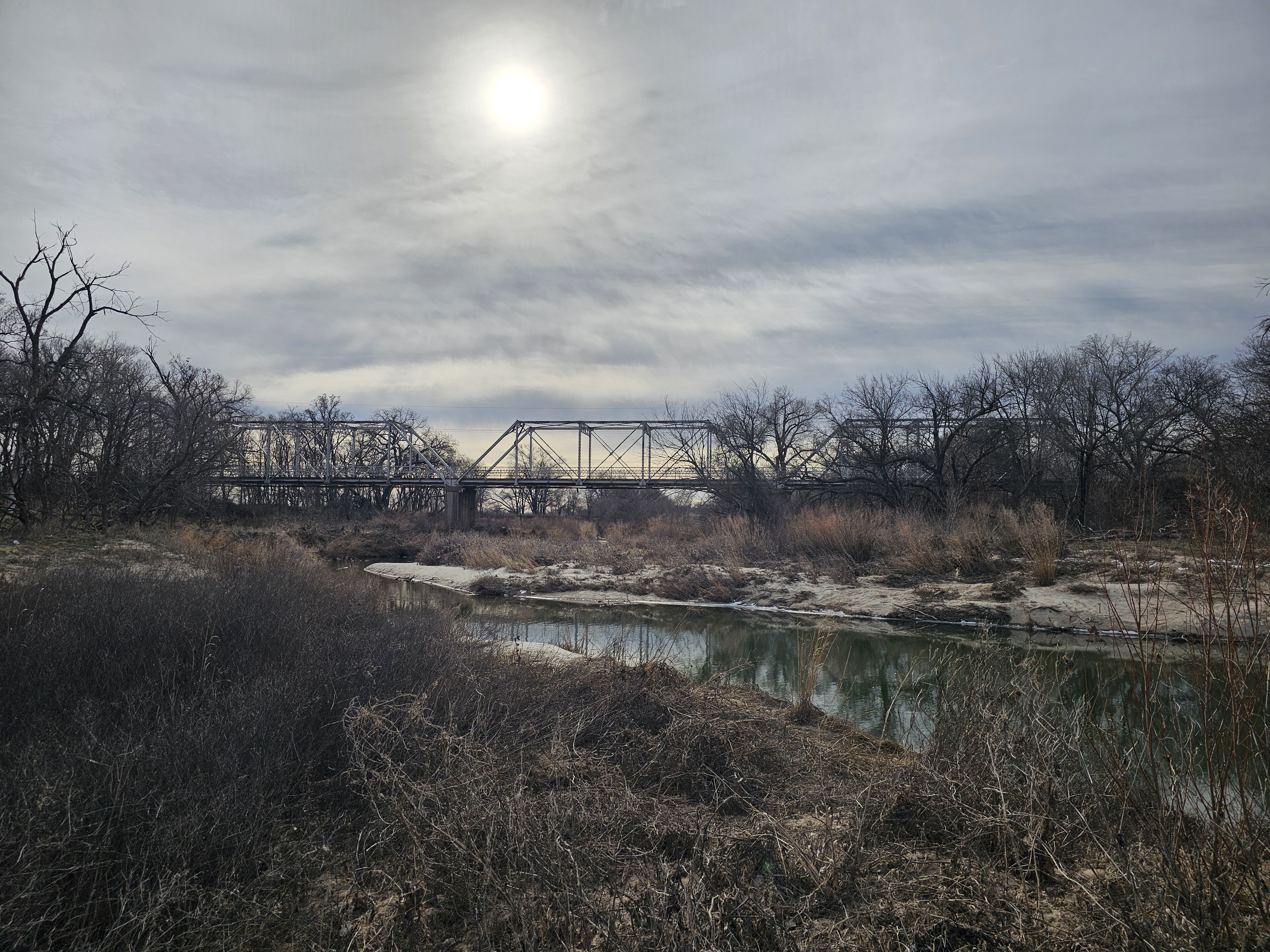

Old SH-51 over North Canadian River
In service since 1915 (111 yrs)
Through Truss
Old SH-51 over North Canadian River
Through Truss
Built 1915
300.00 ft
Built
1915
Type
Through Truss
Style
Pratt
Length
300.00 ft
Main span
100.00 ft
Spans
3
Visits
1
About
5 panel rivited pratt through truss
Identity & location
- NBI Number
- 004600000000000
- Structure Number
- 06E0660N2480002
- Carries
- Sante Fe Rd / Old SH-51
- Crosses
- North Canadian River
- Year Built
- 1915
Structure
3 × 100.00ft Pratt Through Truss spans (5 panels), 300.00ft overall
- Bridge Type
- Through Truss
- Main Span Style
- Pratt
- Overall Length
- 300.00 ft
- Main Span Length
- 100.00 ft
- Deck Width
- 15.40 ft
- Clearance
- 15.40 ft
- Main Spans
- 3
- Main Span Panels
- 5
Photos · 30
Unattached photos
Visit log · 1
-
Jan 25, 2025by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 00460 | 00460 | ✓ |
| Structure No | 06E0660N2480002 | 06E0660N2480002 | ✓ |
| ODOT BRKEY | 460 | — | ⚠ |
| County | Blaine | Blaine | ✓ |
| Facility Carried | E0660 | Sante Fe Rd / Old SH-51 | ✗ |
| Feature | N. CANADIAN RIVER | North Canadian River | ✗ |
| Alt Name | 06E0660N2480002 | — | ⚠ |
| Description | 3-100ft. HIGH TRUSS SPAN | 5 panel rivited pratt through truss | ✗ |
| Year Built | 1915 | 1915 | ✓ |
| Latitude | 36.056944 | 36.0570278 | ✗ |
| Longitude | -98.583889 | -98.5833611 | ✗ |
| Overall Length | 302 | 300.00 | ✗ |
| Deck Width | 16 | 15.40 | ✗ |
| Main Spans | 3 | 3 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 1 | — | ⚠ |
| Road Width | 15.333 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 14.3 | — | ⚠ |
| Structure Rating | Critical (2) | — | ⚠ |
| Deck Rating | Satisfactory (6) | — | ⚠ |
| Super Rating | Poor (4) | — | ⚠ |
| Sub Rating | Satisfactory (6) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 100 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 2 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Blaine | Blaine | ✓ |
| NBI No | 00460 | 00460 | ✓ |
| Structure No | 06E0660N2480002 | 06E0660N2480002 | ✓ |
| Facility Carried | E0660 | Sante Fe Rd / Old SH-51 | ✗ |
| Feature | N. CANADIAN RIVER | — | ⚠ |
| Truss Type | Pratt Through Truss | Through Truss | ✗ |
| Year Built | 1915 | 1915 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | Yes | — | ⚠ |
| NRHP Criteria | Eligible (C) | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Blaine | Blaine | ✓ |
| Structure No | 06E0660N2480002 | 06E0660N2480002 | ✓ |
| Build Date | 1915 | 1915 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 3 | 3 | ✓ |
| Total Length | 302 | 300.00 | ✗ |
| Longest Span | 100 | 100.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 15 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Blaine | Blaine | ✓ |
| Structure Number | 06E0660N2480002 | 06E0660N2480002 | ✓ |
| Built Year | 1915 | 1915 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Pratt | — | ⚠ |
| Num Spans | 3 | 3 | ✓ |
| Total Length | 302 | 300.00 | ✗ |
| Main Span Length | 100 | 100.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Curb Width | 15 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 46 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 00460 | 00460 ✓ | 00460 ✓ | — | — |
| Structure No | 06E0660N2480002 | 06E0660N2480002 ✓ | 06E0660N2480002 ✓ | 06E0660N2480002 ✓ | 06E0660N2480002 ✓ |
| ODOT BRKEY | — | 460 | — | — | — |
| County | Blaine | Blaine ✓ | Blaine ✓ | Blaine ✓ | Blaine ✓ |
| Facility Carried | Sante Fe Rd / Old SH-51 | E0660 ✗ | E0660 ✗ | — | — |
| Feature | North Canadian River | N. CANADIAN RIVER ✗ | N. CANADIAN RIVER ✗ | — | — |
| Alt Name | — | 06E0660N2480002 | — | — | — |
| Description | 5 panel rivited pratt through truss | 3-100ft. HIGH TRUSS SPAN ✗ | — | — | — |
| Year Built | 1915 | 1915 ✓ | 1915 ✓ | 1915 ✓ | 1915 ✓ |
| Latitude | 36.0570278 | 36.056944 ✗ | — | — | — |
| Longitude | -98.5833611 | -98.583889 ✗ | — | — | — |
| Overall Length | 300.00 | 302 ✗ | — | — | — |
| Deck Width | 15.40 | 16 ✗ | — | — | — |
| Main Spans | 3 | 3 ✓ | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 1 | — | — | — |
| Roadway / Curb Width | — | 15.333 | — | 15 | 15 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 14.3 | — | — | — |
| Structure Rating | — | Critical (2) | — | — | — |
| Deck Rating | — | Satisfactory (6) | — | — | — |
| Super Rating | — | Poor (4) | — | — | — |
| Sub Rating | — | Satisfactory (6) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 100 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 2 | — | — | — |
| Truss Type | Through Truss | — | Pratt Through Truss ✗ | Through Truss ✓ | Through Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | Yes | No | — |
| NRHP Criteria | — | — | Eligible (C) | — | — |
| Num Spans | 3 | — | — | 3 ✓ | 3 ✓ |
| Total Length | 300.00 | — | — | 302 ✗ | 302 ✗ |
| Main / Longest Span | 100.00 | — | — | 100 ✗ | 100 ✗ |
| Builder Plate | — | — | No ✓ | No ✓ | |
| Connections | — | — | — | riveted | riveted |
| Bridge Design | — | — | — | — | Pratt |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
