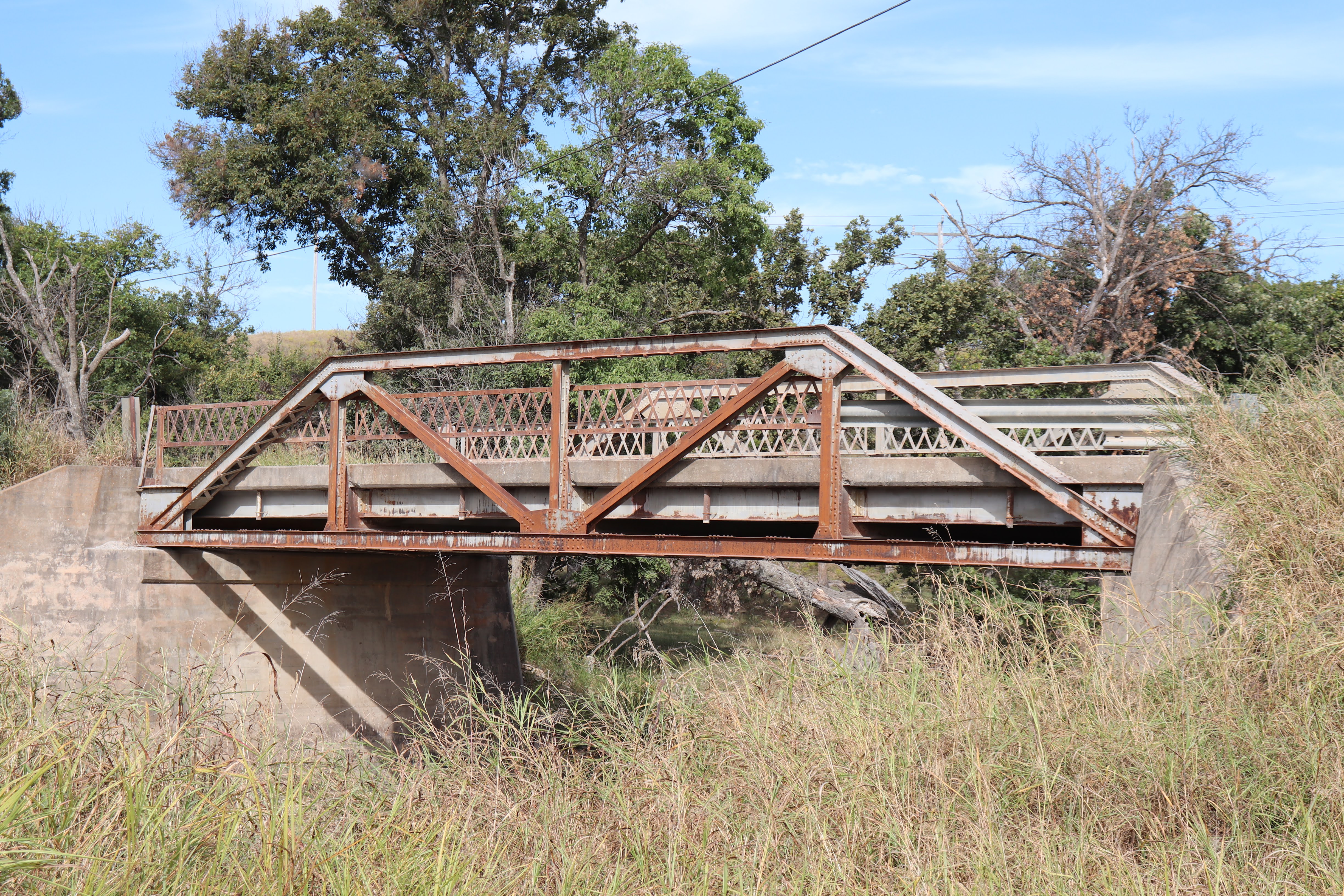

CR5451 over Lucy Creek
In service since 1930 (96 yrs)
Pony Truss
CR5451 over Lucy Creek
Pony Truss
Built 1930
63.00 ft
Built
1930
Type
Pony Truss
Style
Pratt
Length
63.00 ft
Main span
60.00 ft
Spans
1
Visits
1
About
4 panel rivited pony truss
Identity & location
- NBI Number
- 030430000000000
- Structure Number
- 57E0320N3580007
- Carries
- CR5451
- Crosses
- Lucy Creek
- Year Built
- 1930
Structure
1 × 60.00ft Pratt Pony Truss span (4 panels)
- Bridge Type
- Pony Truss
- Main Span Style
- Pratt
- Overall Length
- 63.00 ft
- Main Span Length
- 60.00 ft
- Deck Width
- 18.00 ft
- Main Spans
- 1
- Main Span Panels
- 4
Photos · 32
Unattached photos
Visit log · 1
-
Sep 28, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 03043 | 03043 | ✓ |
| Structure No | 57E0320N3580007 | 57E0320N3580007 | ✓ |
| ODOT BRKEY | 3043 | — | ⚠ |
| County | Osage | Osage | ✓ |
| Facility Carried | FAS 5754 | CR5451 | ✗ |
| Feature | LUCY CREEK | Lucy Creek | ✓ |
| Alt Name | 57E0320N3580005 | — | ⚠ |
| Description | 64ft. PONY TRUSS SPAN | 4 panel rivited pony truss | ✗ |
| Year Built | 1930 | 1930 | ✓ |
| Latitude | 36.55047778 | 36.5505278 | ✗ |
| Longitude | -96.60838333 | -96.6083333 | ✗ |
| Overall Length | 62.999 | 63.00 | ✗ |
| Deck Width | 18.999 | 18.00 | ✗ |
| Main Spans | 1 | 1 | ✓ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 18.045 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 34.5 | — | ⚠ |
| Structure Rating | Poor (4) | — | ⚠ |
| Deck Rating | Satisfactory (6) | — | ⚠ |
| Super Rating | Fair (5) | — | ⚠ |
| Sub Rating | Poor (4) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 112 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 4 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure No | 57E0320N3580007 | 57E0320N3580007 | ✓ |
| Build Date | 1930 | 1930 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 64 | 63.00 | ✗ |
| Longest Span | 64 | 60.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 18 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Osage | Osage | ✓ |
| Structure Number | 57E0320N3580007 | 57E0320N3580007 | ✓ |
| Built Year | 1930 | 1930 | ✓ |
| Bridge Type | Pony Truss | Pony Truss | ✓ |
| Bridge Design | Warren with Verticals | — | ⚠ |
| Num Spans | 1 | 1 | ✓ |
| Total Length | 64 | 63.00 | ✗ |
| Main Span Length | 64 | 60.00 | ✗ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Curb Width | 18 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
3 surveys · 45 fields
| Field | Bridge | 2026 | 2007 | 1993 |
|---|---|---|---|---|
| NBI No | 03043 | 03043 ✓ | — | — |
| Structure No | 57E0320N3580007 | 57E0320N3580007 ✓ | 57E0320N3580007 ✓ | 57E0320N3580007 ✓ |
| ODOT BRKEY | — | 3043 | — | — |
| County | Osage | Osage ✓ | Osage ✓ | Osage ✓ |
| Facility Carried | CR5451 | FAS 5754 ✗ | — | — |
| Feature | Lucy Creek | LUCY CREEK ✓ | — | — |
| Alt Name | — | 57E0320N3580005 | — | — |
| Description | 4 panel rivited pony truss | 64ft. PONY TRUSS SPAN ✗ | — | — |
| Year Built | 1930 | 1930 ✓ | 1930 ✓ | 1930 ✓ |
| Latitude | 36.5505278 | 36.55047778 ✗ | — | — |
| Longitude | -96.6083333 | -96.60838333 ✗ | — | — |
| Overall Length | 63.00 | 62.999 ✗ | — | — |
| Deck Width | 18.00 | 18.999 ✗ | — | — |
| Main Spans | 1 | 1 ✓ | — | — |
| Skew | — | 0 | — | — |
| Lanes | — | 2 | — | — |
| Roadway / Curb Width | — | 18.045 | 18 | 18 |
| Material | — | 3 - Steel | — | — |
| Design | — | Truss — Thru (10) | — | — |
| Span Type Main | — | Main span (M) | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — |
| Open / Closed | — | Posted for load (P) | — | — |
| Sufficiency | — | 34.5 | — | — |
| Structure Rating | — | Poor (4) | — | — |
| Deck Rating | — | Satisfactory (6) | — | — |
| Super Rating | — | Fair (5) | — | — |
| Sub Rating | — | Poor (4) | — | — |
| Culvert Rating | — | Not applicable (N) | — | — |
| Owner | — | 02 - County Highway Agency | — | — |
| Custodian | — | 02 - County Highway Agency | — | — |
| Hwy System | — | 0 - Off Highway | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — |
| Bridge System | — | D | — | — |
| ADT | — | 112 | — | — |
| ADT Year | — | 2022 | — | — |
| Historical | — | 4 | — | — |
| Bridge Type | Pony Truss | — | Pony Truss ✓ | Pony Truss ✓ |
| Num Spans | 1 | — | 1 ✓ | 1 ✓ |
| Total Length | 63.00 | — | 64 ✗ | 64 ✗ |
| Main / Longest Span | 60.00 | — | 64 ✗ | 64 ✗ |
| Builder Plate | — | No ✓ | No ✓ | |
| Connections | — | — | riveted | riveted |
| NR Eligible | — | — | No | — |
| Bridge Design | — | — | — | Warren with Verticals |
| NRHP Listed | — | — | No ✓ |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
