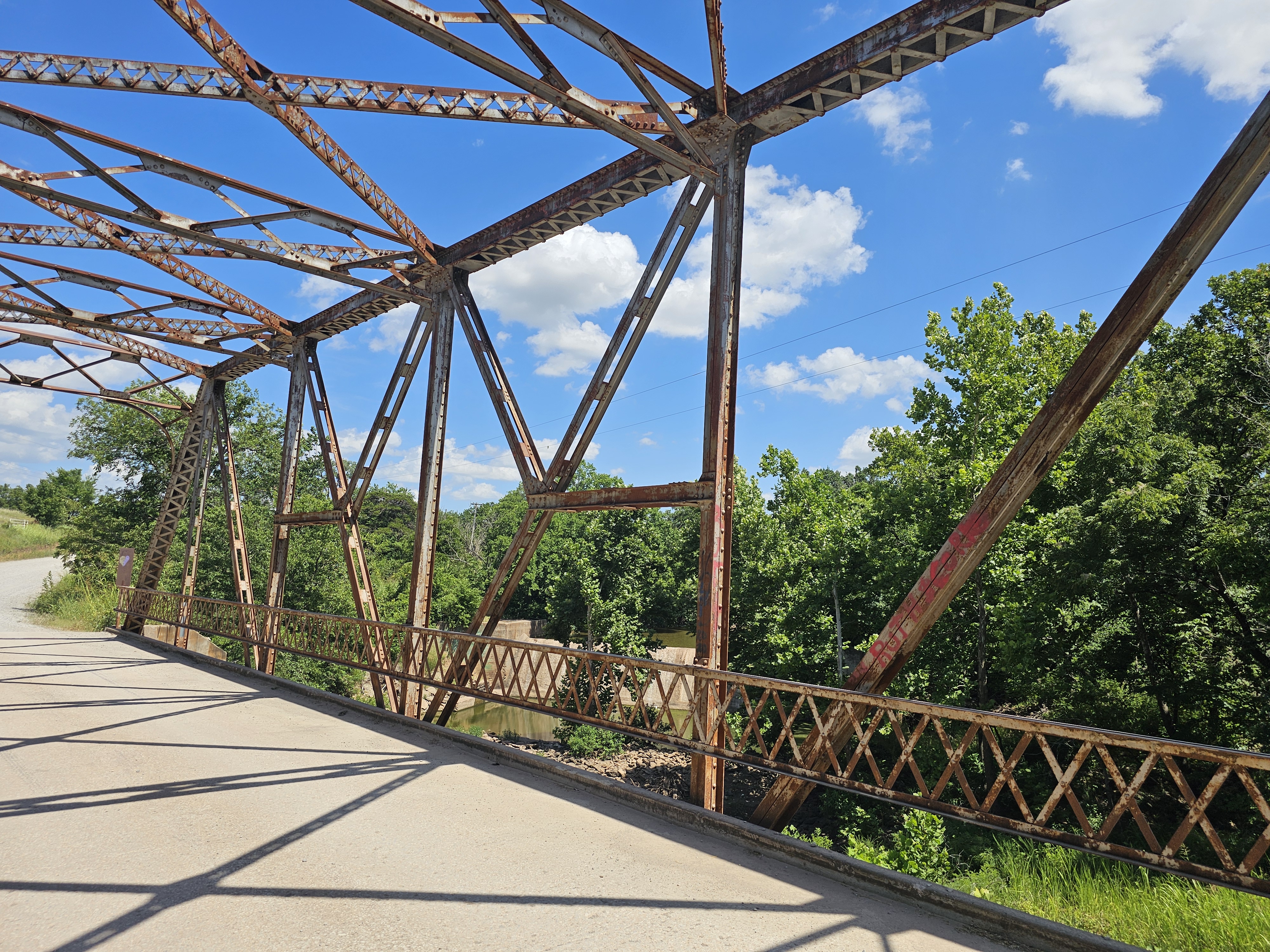

E0690 over Big Creek
In service since 1926 (100 yrs)
Through Truss
E0690 over Big Creek
Through Truss
Built 1926
Built
1926
Type
Through Truss
Style
Pratt
Visits
1
Identity & location
- NBI Number
- 017470000000000
- Structure Number
- 60E0690N3440003
- Carries
- E0690 Rd
- Crosses
- Big Creek
- Year Built
- 1926
Structure
Pratt Through Truss
- Bridge Type
- Through Truss
- Main Span Style
- Pratt
Photos · 13
Unattached photos
Visit log · 1
-
Jun 24, 2024by Mike Roquemore
Appears in datasets
ODOT Off System Bridges NBI
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| NBI No | 01747 | 01747 | ✓ |
| Structure No | 60E0690N3440003 | 60E0690N3440003 | ✓ |
| ODOT BRKEY | 1747 | — | ⚠ |
| County | Payne | Payne | ✓ |
| Facility Carried | 92ND ST. (E0690) | E0690 Rd | ✗ |
| Feature | BIG CREEK | Big Creek | ✓ |
| Alt Name | 60E0690N3440003 | — | ⚠ |
| Description | 97ft. HI TRUSS SPAN | — | ⚠ |
| Year Built | 1926 | 1926 | ✓ |
| Latitude | 36.01485 | 36.0148889 | ✗ |
| Longitude | -96.86945278 | -96.8693056 | ✗ |
| Overall Length | 100.098 | — | ⚠ |
| Deck Width | 18.999 | — | ⚠ |
| Main Spans | 1 | — | ⚠ |
| Skew | 0 | — | ⚠ |
| Lanes | 2 | — | ⚠ |
| Road Width | 17.999 | — | ⚠ |
| Material | 3 - Steel | — | ⚠ |
| Design | Truss — Thru (10) | — | ⚠ |
| Span Type Main | Main span (M) | — | ⚠ |
| Deck Structure | Concrete cast-in-place (1) | — | ⚠ |
| Open / Closed | Posted for load (P) | — | ⚠ |
| Sufficiency | 47.3 | — | ⚠ |
| Structure Rating | Poor (4) | — | ⚠ |
| Deck Rating | Fair (5) | — | ⚠ |
| Super Rating | Fair (5) | — | ⚠ |
| Sub Rating | Satisfactory (6) | — | ⚠ |
| Culvert Rating | Not applicable (N) | — | ⚠ |
| Owner | 02 - County Highway Agency | — | ⚠ |
| Custodian | 02 - County Highway Agency | — | ⚠ |
| Hwy System | 0 - Off Highway | — | ⚠ |
| Functional Class | 09 - Local (Rural) | — | ⚠ |
| Bridge System | D | — | ⚠ |
| ADT | 100 | — | ⚠ |
| ADT Year | 2022 | — | ⚠ |
| Historical | 5 | — | ⚠ |
Source: Oklahoma Department of Transportation (ArcGIS / NBI) · Imported May 6, 2026
Oklahoma Spans of Time 2021
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Payne | Payne | ✓ |
| NBI No | 01747 | 01747 | ✓ |
| Structure No | 60E0690N3440003 | 60E0690N3440003 | ✓ |
| Facility Carried | 92ND ST. (E0690) | E0690 Rd | ✗ |
| Feature | BIG CREEK | — | ⚠ |
| Truss Type | Modified Pratt Through Truss | Through Truss | ✗ |
| Year Built | 1926 | 1926 | ✓ |
| NRHP Listed | No | ✓ | |
| NRHP Eligible | No | — | ⚠ |
| NRHP Criteria | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 7, 2026
Oklahoma Spans of Time 2007
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Payne | Payne | ✓ |
| Structure No | 60E0690N3440003 | 60E0690N3440003 | ✓ |
| Build Date | 1926 | 1926 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Num Spans | 1 | — | ⚠ |
| Total Length | 97 | — | ⚠ |
| Longest Span | 97 | — | ⚠ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Builder | — | ⚠ | |
| Curb Width | 19 | — | ⚠ |
| NR Eligible | No | — | ⚠ |
Source: Oklahoma Department of Transportation · Imported May 4, 2026
Oklahoma Spans of Time 1993
Survey data vs. current bridge record
| Field | Survey | Bridge | |
|---|---|---|---|
| County | Payne | Payne | ✓ |
| Structure Number | 60E0690N3440003 | 60E0690N3440003 | ✓ |
| Built Year | 1926 | 1926 | ✓ |
| Bridge Type | Through Truss | Through Truss | ✓ |
| Bridge Design | Modified Pratt | — | ⚠ |
| Num Spans | 1 | — | ⚠ |
| Total Length | 97 | — | ⚠ |
| Main Span Length | 97 | — | ⚠ |
| Builder Plate | No | ✓ | |
| Connections | riveted | — | ⚠ |
| Curb Width | 19 | — | ⚠ |
| NRHP Listed | No | ✓ |
Source: Oklahoma Department of Transportation / Spans of Time (1993) · Imported May 6, 2026
All surveys vs. bridge record
4 surveys · 45 fields
| Field | Bridge | 2026 | 2021 | 2007 | 1993 |
|---|---|---|---|---|---|
| NBI No | 01747 | 01747 ✓ | 01747 ✓ | — | — |
| Structure No | 60E0690N3440003 | 60E0690N3440003 ✓ | 60E0690N3440003 ✓ | 60E0690N3440003 ✓ | 60E0690N3440003 ✓ |
| ODOT BRKEY | — | 1747 | — | — | — |
| County | Payne | Payne ✓ | Payne ✓ | Payne ✓ | Payne ✓ |
| Facility Carried | E0690 Rd | 92ND ST. (E0690) ✗ | 92ND ST. (E0690) ✗ | — | — |
| Feature | Big Creek | BIG CREEK ✓ | BIG CREEK ✓ | — | — |
| Alt Name | — | 60E0690N3440003 | — | — | — |
| Description | — | 97ft. HI TRUSS SPAN | — | — | — |
| Year Built | 1926 | 1926 ✓ | 1926 ✓ | 1926 ✓ | 1926 ✓ |
| Latitude | 36.0148889 | 36.01485 ✗ | — | — | — |
| Longitude | -96.8693056 | -96.86945278 ✗ | — | — | — |
| Overall Length | — | 100.098 | — | — | — |
| Deck Width | — | 18.999 | — | — | — |
| Main Spans | — | 1 | — | — | — |
| Skew | — | 0 | — | — | — |
| Lanes | — | 2 | — | — | — |
| Roadway / Curb Width | — | 17.999 | — | 19 | 19 |
| Material | — | 3 - Steel | — | — | — |
| Design | — | Truss — Thru (10) | — | — | — |
| Span Type Main | — | Main span (M) | — | — | — |
| Deck Structure | — | Concrete cast-in-place (1) | — | — | — |
| Open / Closed | — | Posted for load (P) | — | — | — |
| Sufficiency | — | 47.3 | — | — | — |
| Structure Rating | — | Poor (4) | — | — | — |
| Deck Rating | — | Fair (5) | — | — | — |
| Super Rating | — | Fair (5) | — | — | — |
| Sub Rating | — | Satisfactory (6) | — | — | — |
| Culvert Rating | — | Not applicable (N) | — | — | — |
| Owner | — | 02 - County Highway Agency | — | — | — |
| Custodian | — | 02 - County Highway Agency | — | — | — |
| Hwy System | — | 0 - Off Highway | — | — | — |
| Functional Class | — | 09 - Local (Rural) | — | — | — |
| Bridge System | — | D | — | — | — |
| ADT | — | 100 | — | — | — |
| ADT Year | — | 2022 | — | — | — |
| Historical | — | 5 | — | — | — |
| Truss Type | Through Truss | — | Modified Pratt Through Truss ✗ | Through Truss ✓ | Through Truss ✓ |
| NRHP Listed | — | No ✓ | — | No ✓ | |
| NRHP Eligible | — | — | No | No | — |
| Num Spans | — | — | — | 1 | 1 |
| Total Length | — | — | — | 97 | 97 |
| Main / Longest Span | — | — | — | 97 | 97 |
| Builder Plate | — | — | No ✓ | No ✓ | |
| Connections | — | — | — | riveted | riveted |
| Bridge Design | — | — | — | — | Modified Pratt |
✓ matches the bridge record · ✗ differs · blank in the Bridge column means the bridge record has no value for that field.
